Product Summary
The 2SC1815-GR is a audio frequency amplifier high frequency OSC NPN transistor.
Parametrics
2SC1815-GR absolute maximum ratings: (1)Collector-base voltage VCBO: 60 V; (2)Collector-emitter voltage VCEO: 50 V; (3)Emitter-base voltage VEBO: 5 V; (4)Collector current IC: 150 mA; (5)Base current IB: 50 mA; (6)Collector dissipation(Ta=25℃) PC: 400 mW; (7)Junction Temperature TJ: +125 ℃; (8)Storage Temperature TSTG: -55 ~ +125 ℃.
Features
2SC1815-GR features: (1)Collector-Emitter voltage: BVCEO=50V; (2)Collector current up to 150mA; (3)High hFE linearity; (4)Complimentary to UTC 2SA1015.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

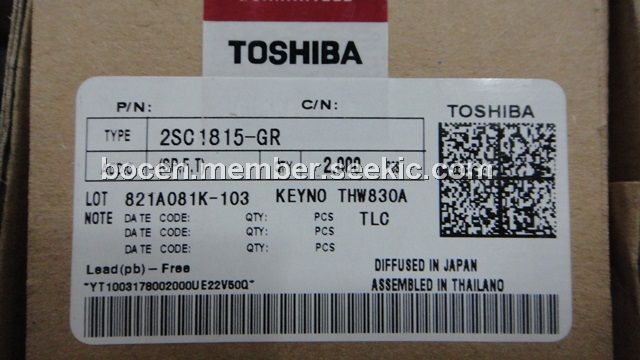

 2SC1815-GR(TPE2,F) |
Toshiba |
Transistors Bipolar (BJT) 50V NPN 150mA Bipolar Trans 60V |
Data Sheet |
|
|
||||||||||||
