Product Summary

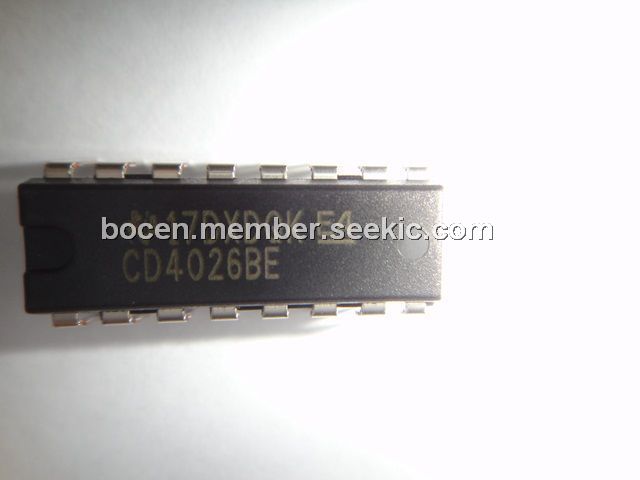

The CD4026BE is a CMOS decade counter/divider. The CD4026BE is particularly advantageous in display applications where low power dissipation and low package count are important. A high RESET signal clears the decade counter to its zero count. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low.
Parametrics
CD4026BE absolute maximum ratings: (1)Counting Sequence: Up; (2)Number of Circuits: 1; (3)Package / Case: PDIP-16; (4)Logic Family: CMOS; (5)Logic Type: CMOS; (6)Number of Input Lines: 0; (7)Propagation Delay Time: 500 ns, 200 ns, 150 ns; (8)Supply Voltage (Max): 18 V; (9)Maximum Operating Temperature: + 125℃; (10)Minimum Operating Temperature: - 55℃; (11)Packaging: Tube; (12)Function: Decade/Divider; (13)Mounting Style: Through Hole; (14)Number of Output Lines: 0; (15)Operating Supply Voltage: 3 V to 18 V.
Features
CD4026BE features: (1)Counter and 7-segment decoding in one package; (2)Easily interfaced with 7-segment display types; (3)Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V; (4)Ideal for low-power displays; (5)Display enable output (CD4026B); (6)"Ripple blanking" and lamp test (CD4033B); (7)100% tested for quiescent current at 20 V; (8)Standardized, symmetrical output characteristics; (9)5-V, 10-V, and 15-V parametric ratings; (10)Schmitt-triggered clock inputs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4026BE |
Texas Instruments |
Counter ICs Decade/Divider |
Data Sheet |
|
|
||||||||||||
|
CD4026BEE4 |
Texas Instruments |
Counter ICs CMOS Decade Counter/ Divider |
Data Sheet |
|
|
||||||||||||
