Product Summary

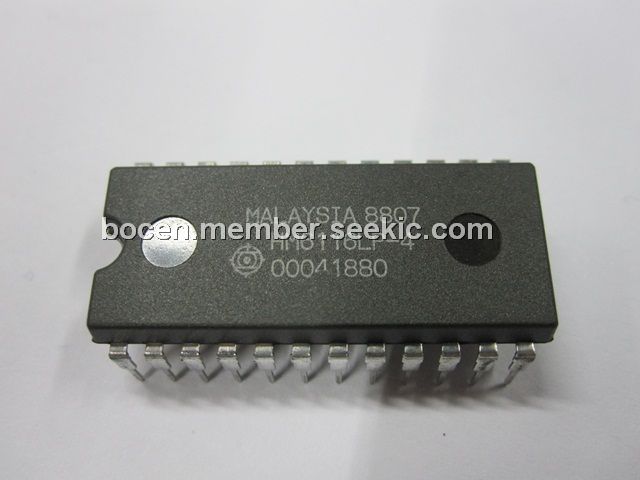

The HM6116LP-4 is a 2048-word 8bit High Speed CMOS Static RAM.
Parametrics
HM6116LP-4 absolute maximum ratings: (1)Voltage on any pin ralative to Vss, VT: 0.5 to +7.0V; (2)Operating temperature: 0 to +70℃; (3)Storage temperature: -55 to +125℃; (4)Storage temperature: -10 to +85℃; (5)Power dissipation: 1.0℃.
Features
HM6116LP-4 features: (1)Single 5V supply; (2)High speed: Fast access time; (3)Low power standby and low power operation; (4)Completely static RAM; (5)Directly TTL compatible: All input and output; (6)Pin out compatible with standard 16K EPROM/MASK ROM; (7)Equal access and cycle time; (8)Capability of battery back up operation.
Diagrams
 |
