Product Summary

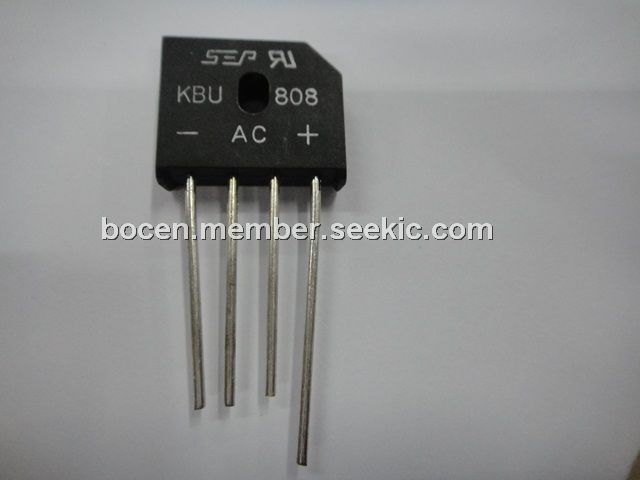

The KBU808G is an 8.0A glass passivated bridge rectifier.

Parametrics

KBU808G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 800 V; (2)RMS Reverse Voltage VR(RMS): 560 V; (3)Average Rectified Output Current @TA = 65℃ IO: 8.0 A; (4)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM: 200 A; (5)Forward Voltage (per element) @IF = 4.0A VFM: 1.1 V; (6)Peak Reverse Current @TA = 25℃ IR: 5.0 μA; (7)Operating and Storage Temperature Range Tj, TSTG: -55 to +150 ℃.

Features

KBU808G features: (1)Glass Passivated Die Construction; (2)Low Forward Voltage Drop; (3)High Current Capability; (4)High Reliability; (5)High Surge Current Capability; (6)Ideal for Printed Circuit Boards.

Diagrams

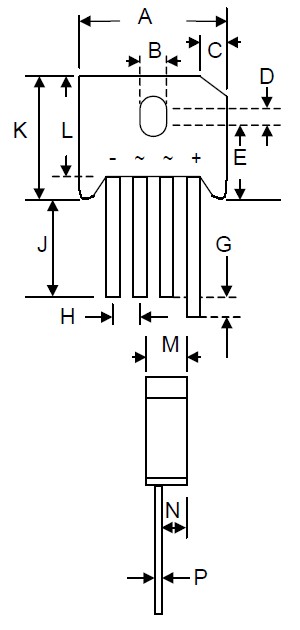

KBU808G dimensions
