Product Summary

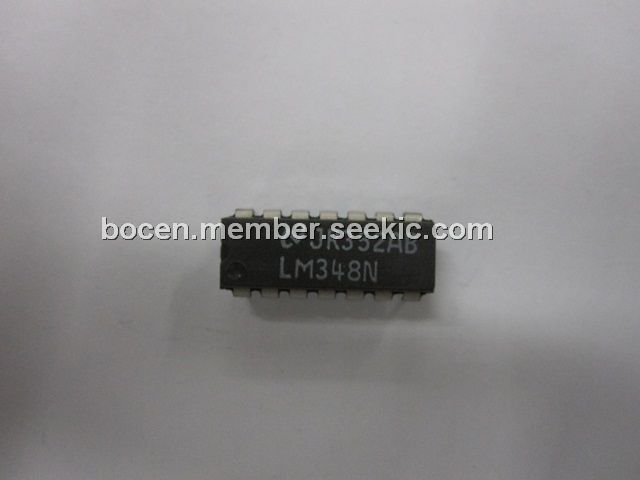

The LM348N is a quadruple, independent, high-gain, internally compensated operational amplifier designed to have operating characteristics similar to the mA741. The amplifier of the LM348N exhibit low supply current drain.

Parametrics

LM348N absolute maximum ratings: (1)Supply voltage, VCC+: 18 V; (2)Supply voltage, VCC–: –18 V; (3)Differential input voltage, VID: 36 V; (4)Input voltage, VI: ±18 V; (5)Operating free-air temperature range, TA: 0 to 70 ℃; (6)Storage temperature range: –65 to 150 ℃; (7)Case temperature for 60 seconds FK package: 260 ℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J package: 300 ℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds D, N, or PW package: 260 ℃.

Features

LM348N features: (1)Low Supply Current Drain 0.6 mA Typ; (2)Low Input Offset Voltage; (3)Low Input Offset Current; (4)Class AB Output Stage; (5)Input/Output Overload Protection; (6)Designed to Be Interchangeable.

Diagrams

LM348N unity-gain amplifier and inverting amplifier
