Product Summary
The MAX232CPE is a 5V-powered, multichannel RS-232 driver/receiver. The MAX232CPE driver/receiver is intended for all EIA/TIA 232E and V.28/V.24 communication interfaces, particularly applications where ±12V is not available. The parts of the MAX232CPE is especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232CPE uses no external components and are recommended for applications where printed circuit board space is critical.
Parametrics
MAX232CPE absolute maximum ratings: (1)Supply Voltage: 5 V; (2)Data Rate: 120 kbps; (3)Nom Cap Value: 1 μF; (4)Operating Temperature: 0℃ to +70℃.
Features
MAX232CPE features: (1)Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28; (2)Operates From a Single 5-V Power Supply With 1.0 μF Charge-Pump Capacitors; (3)Operates Up To 120 kbit/s; (4)Two Drivers and Two Receivers; (5)±30V Input Levels; (6)Low Supply Current 8 mA Typical; (7)ESD Protection Exceeds JESD 22. 2000-V Human-Body Model (A114-A); (8)Upgrade With Improved ESD (15-kV HBM) and 0.1μF Charge-Pump Capacitors is Available.

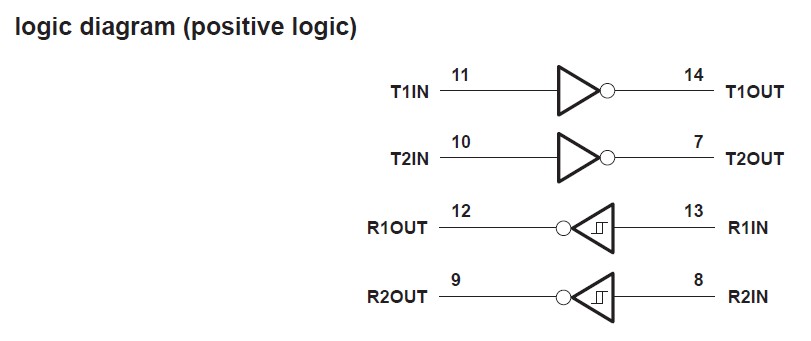

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232CPE |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
