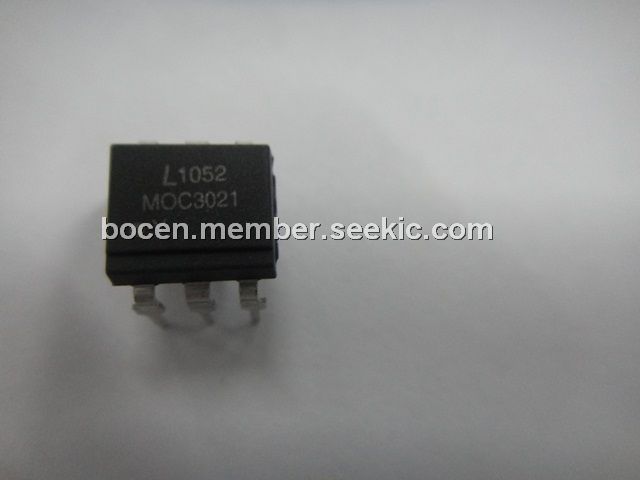

MOC3021

6-pin, DIP, photocoupler, triac driver output, 5,000Vrms, 400V, Solid state relays

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.23 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.23

PartNumber:: MOC3021

Brand:: Lite-On Technology Corporation - Lite-On Opto | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Apple Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:MOC3021
US $0.20 - 0.23
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MOC3021 is a 6-pin DIP photocoupler with triac driver output.

Parametrics

MOC3021 absolute maximum ratings: (1)Forward Current: 50 mA; (2)Reverse Voltage: 6 V; (3)Power Dissipation: 70 mW; (4)Off-State Output Terminal Voltage: 400 V; (5)Peak Repetitive Surge Current ( PW=1ms, 120pps ): 1 A; (6)Collector Power Dissipation: 300 mW; (7)Total Power Dissipation: 330 mW; (8)Isolation Voltage: 5,000 Vrms; (9)Ambient Operating Temperature Range: -40 to +100 ℃; (10)Storage Temperature Range: -55 to +150℃; (11)Soldering Temperature: 260 ℃.

Features

MOC3021 features: (1)Isolation voltage between input and output Viso : 5,000Vrms; (2)6pin DIP photocoupler, triac driver output; (3)High repetitive peak off-state voltage VDRM : Min. 400V; (4)High critical rate of rise of off-state voltage ( dV/dt : MIN. 100V / μs ); (5)Dual-in-line package; (6)Motor Controls; (7)Solid state relays; (8)For triggering high power thyristor and triac; (9)Household use equipment.
