Product Summary
The SN74LS145N is a BCD-to-decimal decoder/driver. The SN74LS145N 1-of-10 Decoder/Driver, is designed to accept BCD inputs and provide appropriate outputs to drive 10 digit incandescent displays. All outputs of the SN74LS145N remains off for all invalid binary input conditions. The SN74LS145N is designed for use as indicator/relay drivers or as an open-collector logic circuit driver. Each of the high breakdown output transistors will sink up to 80 mA of current. Typical power dissipation is 35 mW. The SN74LS145N is fully compatible with all TTL families.
Parametrics
SN74LS145N absolute maximum ratings: (1)Voltage Supply: 4.75 V ~ 5.25 V; (2)VIH Input HIGH Voltage 2.0 V; (3)VIL Input LOW Voltage: 0.8V; (4)Current Output High, Low: 40μA, 1.6mA; (5)Packaging: Tube ; (6)Type: Decoder; (7)Voltage Supply Source: Single Supply; (8)Operating Temperature: 0℃ ~ 70℃.
Features
SN74LS145N features: (1)Low Power Version; (2)Input Clamp Diodes Limit High Speed Termination Effects.

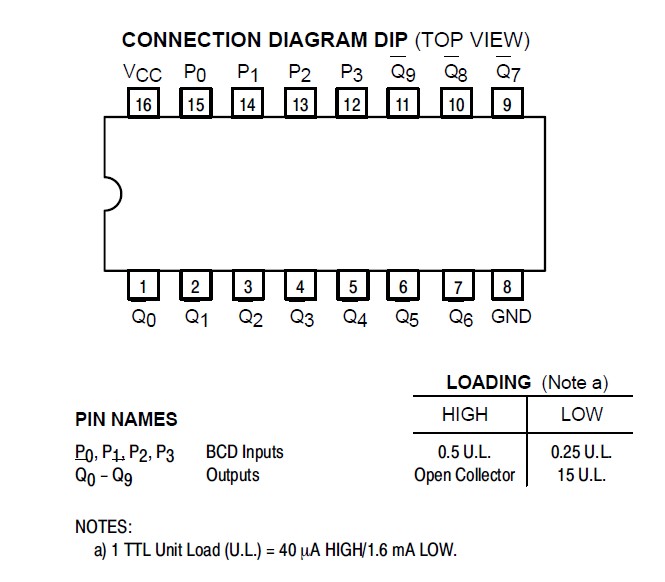

Diagrams
