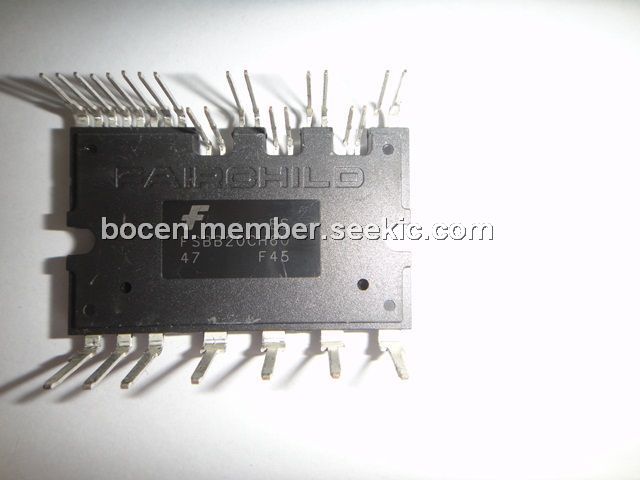

FSBB20CH60

smart power module,SPM-27, 450V, 20A, low thermal resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.75~9.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.75~9.30

PartNumber:: FSBB20CH60

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Apple Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:FSBB20CH60
US $8.75 - 9.30
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FSBB20CH60 is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low power inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. The applications of the FSBB20CH60 include: (1)AC 100V ~ 253V three-phase inverter drive for small power ac motor drives; (2)Home appliances applications like air conditioner and washing machine.

Parametrics

FSBB20CH60 absolute maxing ratings: (1)On the conditions of Applied between P- NU, NV, NW, VPN Supply Voltage: 450V; (2)On the conditions of Applied between P- NU, NV, NW, VPN(Surge) Supply Voltage (Surge): 500V; (3)VCES Collector-emitter Voltage: 600V; (4)On the condition of TC = 25℃, ±IC Each IGBT Collector Current: 20A; (5)On the conditions of TC = 25℃, Under 1ms Pulse Width, ±ICP Each IGBT Collector Current(Peak): 40A; (6)On the condition of TC = 25℃ per One Chip, PC Collector Dissipation: 61W; (7)TJ Operating Junction Temperature: -20 ~ 125℃.

Features

FSBB20CH60 features: (1)UL Certified No.E209204(SPM27-CA package); (2)Very low thermal resistance due to using DBC; (3)600V-20A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.
