Product Summary

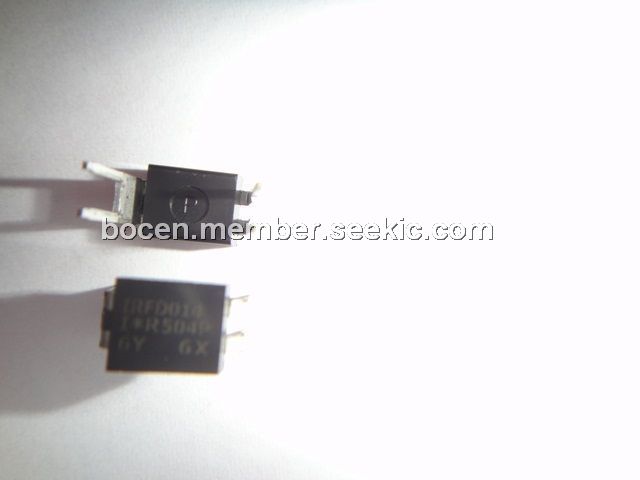

The IRFD014 is a 1.3 Watt rated power MOSFET.

Parametrics

IRFD014 absolute maximum ratings: (1)ID @ TC=25℃ continous drain current: 1.7A; (2)ID @ TC=100℃ continous drain current: 1.2A; (3)gate-source voltage: ±20 V; (4)max. power dissipation: 1.3 W; (5)operating junction and storage temperature range: -65 to 150 ℃; (6)soldering temperature: 300 ℃; (7)Linear derating factor: 0.0083W/℃; (8)Single pulse avalanche energy: 130mJ.

Features

IRFD014 features: (1)For automatic insertion; (2)end stackable; (3)Fast switching; (4)Dynamic dv/dt rating; (5)simple drive requirements; (6)ease of paralleling; (7)175℃ operating temperature.

Diagrams

IRFD014 circuit
