Product Summary

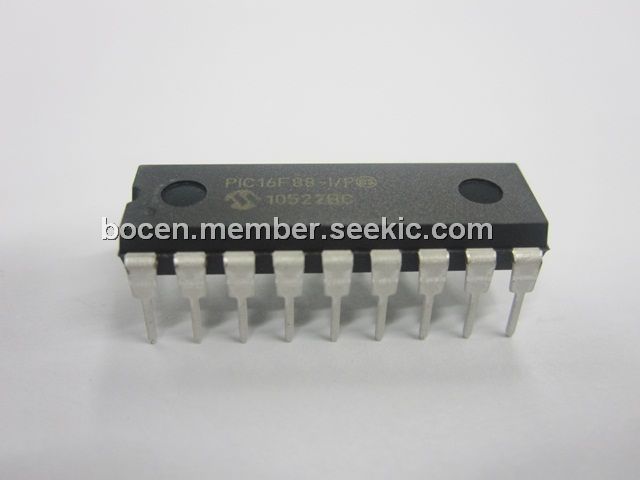

The PIC16F88-I/P is a 18 pin enhanced flash microcontroller with nano Watt technology. It belongs to the Mid-Range family of the PICmicro devices.

Parametrics

PIC16F88-I/P absolute maximum ratings: (1)Ambient temperature under bias: -55℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (4)Voltage on MCLR with respect to VSS: -0.3 to +14V; (5)Total power dissipation: 1W; (6)Maximum current out of VSS pin: 200 mA; (7)Maximum current into VDD pin: 200 mA; (8)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (10)Maximum output current sunk by any I/O pin: 25 mA; (11)Maximum output current sourced by any I/O pin: 25 mA; (12)Maximum current sunk by PORTA: 100 mA; (13)Maximum current sourced by PORTA: 100 mA; (14)Maximum current sunk by PORTB: 100 mA; (15)Maximum current sourced by PORTB: 100 mA.

Features

PIC16F88-I/P features: (1)Power Managed modes: Primary RUN: RC oscillator, 76 μA, 1 MHz, 2V; RC_RUN: 7 μA, 31.25 kHz, 2V; SEC_RUN: 9 μA, 32 kHz, 2V; SLEEP: 0.1 μA, 2V; (2)Timer1 Oscillator: 1.8 μA, 32 kHz, 2V; (3)Watchdog Timer: 2.2 μA, 2V; (4)Two-Speed Oscillator Start-up; (5)100,000 erase/write cycles Enhanced FLASH program memory typical; (6)1,000,000 typical erase/write cycles EEPROM data memory typical; (7)EEPROM Data Retention: > 40 years; (8)In-Circuit Serial Programming (ICSP) via two pins; (9)Processor read/write access to program memory; (10)Low-Voltage Programming; (11)In-Circuit Debugging via two pins; (12)Extended Watchdog Timer (WDT): Programmable period from 1 ms to 268s; (13)Wide operating voltage range: 2.0V to 5.5V.

Diagrams

PIC16F88-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC16F88-I/P
PIC16F88-I/P
Microchip Technology
8-bit Microcontrollers (MCU) 7KB 368 RAM 16 I/O
Data Sheet
0-1: $1.95
1-10: $1.56
10-25: $1.51
25-100: $1.45
PIC16F88-I/PREL
PIC16F88-I/PREL
Other

Data Sheet
Negotiable
