MJD44H11G

TO-251, complementary power transistor, 8 amperes, 80 volts, 20 watts, Pb-Free, NPN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.19 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.11~0.19

PartNumber:: MJD44H11G

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Apple Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-22

From Other Seller

Part Number:MJD44H11G
US $0.11 - 0.19
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MJD44H11G is a complementary power transistor. It is designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.

Parametrics

MJD44H11G maximum ratings: (1)Collector-Emitter Voltage, VCEO: 80 Vdc; (2)Emitter-Base Voltage, VEB: 5 Vdc; (3)Collector Current: Continuous, IC: 8Adc; Peak, IC: 16 Adc; (4)Total Power Dissipation @ TC = 25℃: PD: 20 W; Derate above 25℃: 0.16W/℃; (5)Total Power Dissipation* @ TA = 25℃: PD: 1.75 W; Derate above 25℃: 0.014 W/℃; (6)Operating and Storage Junction Temperature Range, TJ, Tstg: -55 to +150℃.

Features

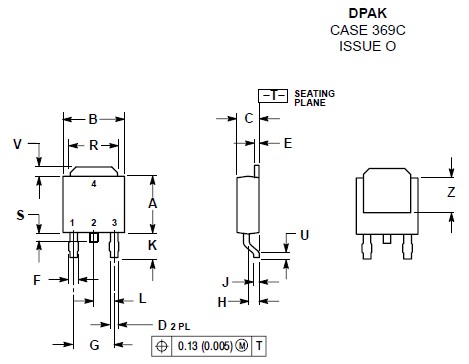

MJD44H11G features: (1)Pb-Free Packages are Available; (2)Lead Formed for Surface Mount Application in Plastic Sleeves(No Suffix); (3)Straight Lead Version in Plastic Sleeves (“-1” Suffix); (4)Lead Formed Version in 16 mm Tape and Reel for Surface Mount(“T4” Suffix); (5)Electrically Similar to Popular D44H/D45H Series; (6)Low Collector Emitter Saturation Voltage -VCE(sat) = 1.0 Volt Max @ 8.0 Amperes; (7)Fast Switching Speeds; (8)Complementary Pairs Simplifies Designs; (9)Epoxy Meets UL 94, V-0 @ 0.125 in; (10)ESD Ratings: Human Body Model, 3B > 8000 V; Machine Model, C > 400 V.
