Product Summary

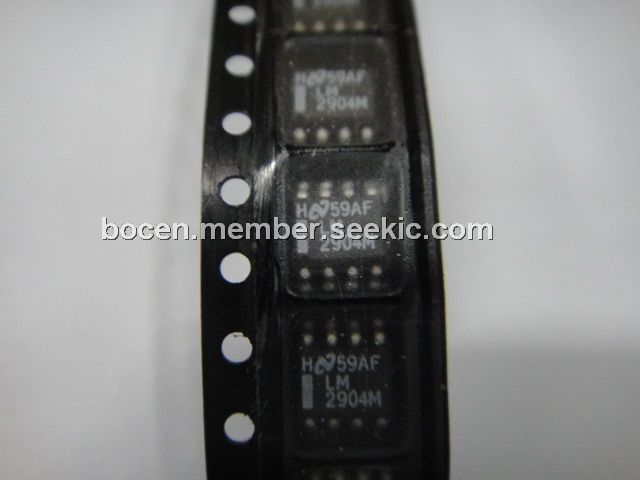

The LM2904M is a low power dual operational amplifier. It is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas of the LM2904M include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM2904M absolute maximum ratings: (1)Supply Voltage, V+: 26V; (2)Differential Input Voltage: 26V; (3)Input Voltage: -0.3V to +26V; (4)Power Dissipation: 830 mW; (5)Input Current (VIN < -0.3V): 50mA; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature, DIP: 260℃; (9)Lead Temperature, Metal Can: 300℃; (10)ESD Tolerance: 250V.
Features
LM2904M features: (1)Available in 8-Bump micro SMD chip sized package; (2)Internally frequency compensated for unity gain; (3)Large dc voltage gain: 100 dB; (4)Wide bandwidth (unity gain): 1 MHz(temperature compensated); (5)Wide power supply range: Single supply: 3V to 32V; or dual supplies: ±1.5V to ±16V; (6)Very low supply current drain (500 μA)—essentially independent of supply voltage; (7)Low input offset voltage: 2 mV; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2904M |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Dual Operational Amp |
Data Sheet |
|
|
||||||||||||
|
LM2904M/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
|
LM2904M_Q |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Dual Operational Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904MX |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps SOP-8 Dual Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM2904MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
