Product Summary

The M6M80011AP is a 1024-bit electrically erasable CMOS EEPROM and all has a buit in high voltage generator to enable operation in all modes by a single 5V power supply. The M6M80011AP is especially suitable for use as a nonvolatile channel memory for electronic tuner and as the read only memory system that must be frequently reprogrammed in the field.

Parametrics

M6M80011AP absolute maximum ratings: (1)VDD, Supply voltage: -0.3 to 6.0V; (2)VI, input voltage: -0.3 to VDD +0.3V; (3)VO, output voltage: -0.3 to VDD +0.3V; (4)IOL, low level output current: 0 to 10mA; (5)Tstg, storage temperature: -40 to 125℃; (6)Topr, operating temperature: -10 to 90℃.

Features

M6M80011AP features: (1)Single 5V power supply; (2)Clock synchronous serial I/O; (3)Three ports control; (4)Built in sequential controller; (5)100000 erase/write cycles; (6)10 year data retention.

Diagrams

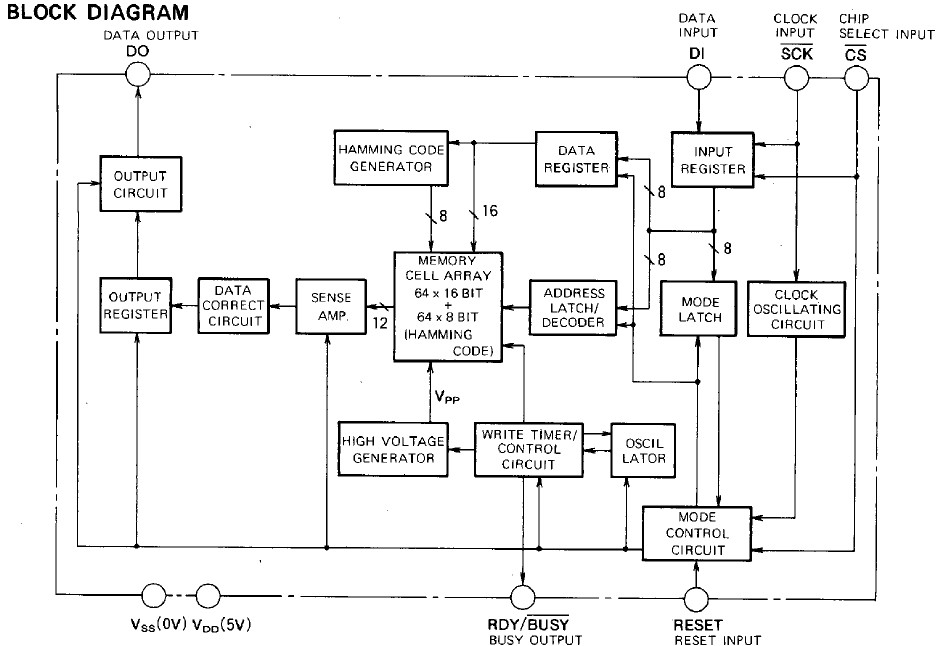

M6M80011AP block diagram
