Product Summary
The 2SA1015-GR is a PNP silicon plastic-encapsulate transistor. The 2SA1015-GR is a micro commercial component.
Parametrics
2SA1015-GR absolute maximum ratings: (1)Category Discrete: Semiconductor Products; (2)Transistor Type: PNP; (3)Voltage Collector Emitter Breakdown (Max): 50V; (4)Current Collector (Ic) (Max): 150mA; (5)Power Max: 400mW; (6)DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 2mA, 6V; (7)Vce Saturation (Max) @ Ib, Ic: 300mV @ 10mA, 100mA; (8)Frequency Transition: 80MHz; (9)Mounting Type: Through Hole; (10)Package / Case: TO-92-3 (Long Body), TO-226; (11)Packaging: Tape & Reel (TR); (12)Lead Free Status: Lead Free.
Features
2SA1015-GR features: (1)Capable of 0.4Watts of Power Dissipation; (2)Collector-current 0.15A; (3)Collector-base Voltage 50V; (4)Operating and storage junction temperature range: -55℃ to +150℃; (5)Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0; (6)Marking:A1015.

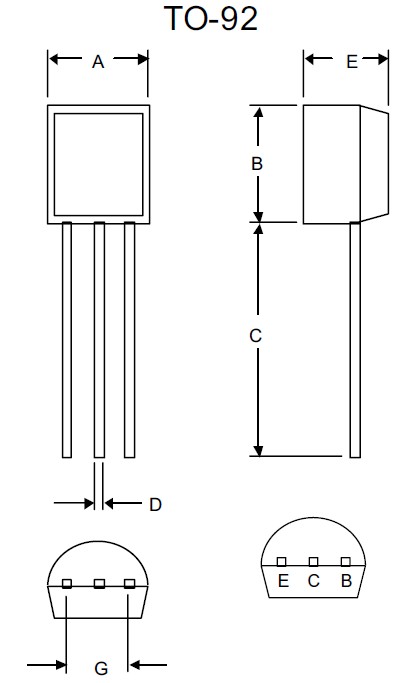

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1015-GR |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
2SA1015-GR(F,T) |
|
TRANS PNP 50V 150MA TO-92 |
Data Sheet |
|
|
||||||
|
2SA1015-GR(TE2,F,T) |
|
TRANS PNP 50V 150MA TO-92 |
Data Sheet |
|
|
||||||
