Product Summary

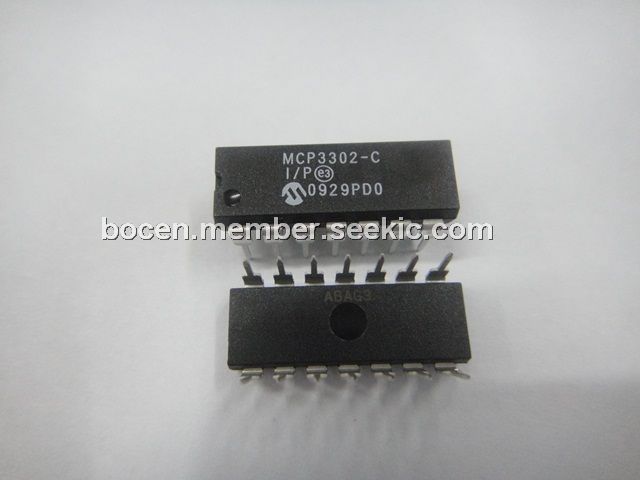

The Microchip Technology Inc. MCP3302-CI/P 13-bit A/D converter features full differential inputs and low-power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The MCP3302-CI/P is programmable to provide two differential input pairs or four single ended inputs. Incorporating a successive approximation architecture with on-board sample and hold circuitry, the 13-bit A/D converter is specified to have ±1 LSB Differential Nonlinearity (DNL); ±1 LSB Integral Nonlinearity (INL) for B-grade and ±2 LSB for C-grade devices. The industry-standard SPI serial interface enables 13-bit A/D converter capability to be added to any PIC microcontroller. The MCP3302-CI/P features low current design that permits operation with typical standby and active currents of only 50 nA and 300 μA, respectively. The MCP3302-CI/P operates over a broad voltage range of 2.7V to 5.5V and is capable of conversion rates of up to 100 ksps.
Parametrics
MCP3302-CI/P absolute maximum ratings: (1)VDD: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VDD +0.3V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temp. with power applied: -65℃ to +125℃; (5)Maximum Junction Temperature: 150℃; (6)ESD protection on all pins (HBM): > 4 kV.
Features
MCP3302-CI/P features: (1)Full Differential Inputs; (2)2 Differential or 4 Single ended Inputs (MCP3302); (3)4 Differential or 8 Single ended Inputs (MCP3304); (4)±1 LSB maximum DNL; (5)±1 LSB maximum INL (MCP3302/04-B); (6)±2 LSB maximum INL (MCP3302/04-C); (7)Single supply operation: 2.7V to 5.5V; (8)100 ksps sampling rate with 5V supply voltage; (9)50 ksps sampling rate with 2.7V supply voltage; (10)50 nA typical standby current, 1 μA maximum; (11)450 μA maximum active current at 5V; (12)Industrial Temperature Range: - -40℃ to +85℃; (13)14 and 16-pin PDIP, SOIC, and TSSOP packages.

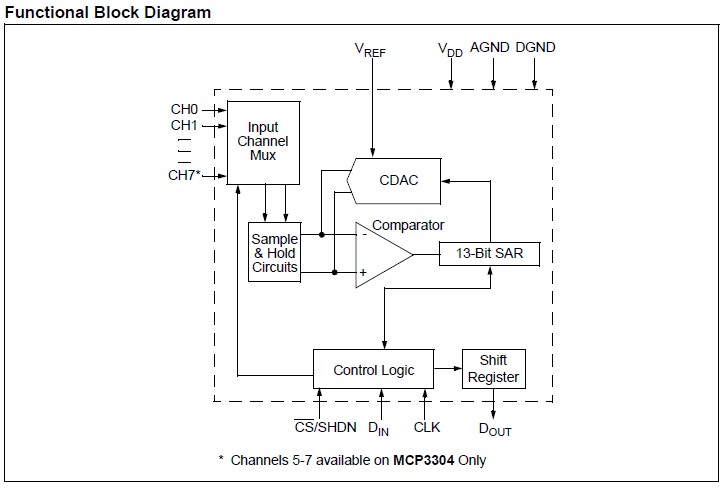

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP3302-CI/P |
Microchip Technology |
ADC (A/D Converters) 13-bit Diff In 2 Chl |
Data Sheet |
|
|
||||||||||||
