Product Summary

The MC33166T is a high performance fixed frequency power switching regulator that contains the primary functions required for dc-to-dc converters. The device was specifically designed to be incorporated in step-down and voltage-inverting configurations with a minimum number of external components and can also be used cost effectively in step-up applications. The MC33166T consists of an internal temperature compensated reference, fixed frequency oscillator with on-chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier, and a high current output switch. Protective features of the MC33166T consists of cycle-by-cycle current limiting, undervoltage lockout, and thermal shutdown. Also included is a low power standby mode that reduces power supply current to 36 uA.

Parametrics

MC33166T maximum ratings: (1)Power Supply Input Voltage, VCC: 40 V; (2)Switch Output Voltage Range, VO(switch): –1.5 to + Vin V; (3)Voltage Feedback and Compensation Input Voltage Range,VFB, VComp: –1.0 to + 7.0 V; (4)Power Dissipation: Case 314A, 314B and 314D (TA = +25℃), PD: Internally Limited W; thermal Resistance, Junction–to–Ambient, θJA: 65 ℃/W; Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; Case 936A (D2PAK) (TA = +25℃), PD: Internally Limited W; Thermal Resistance, Junction–to–Ambient, θJA: 70 ℃/W; Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; (5)Operating Junction Temperature, TJ: +150 ℃; (6)Operating Ambient Temperature: MC34166, TA: 0 to + 70 ℃; MC33166, TA:– 40 to + 85℃; (7)Storage Temperature Range, Tstg: – 65 to +150 ℃.

Features

MC33166T features: (1)Output Switch Current in Excess of 3.0 A; (2)Fixed Frequency Oscillator (72 kHz) with On-Chip Timing; (3)Provides 5.05 V Output without External Resistor Divider; (4)Precision 2% Reference; (5)0% to 95% Output Duty Cycle; (6)Cycle-by-Cycle Current Limiting; (7)Undervoltage Lockout with Hysteresis; (8)Internal Thermal Shutdown; (9)Operation from 7.5 V to 40 V; (10)Standby Mode Reduces Power Supply Current to 36 uA; (11)Economical 5-Lead TO-220 Package with Two Optional Leadforms; (12)Also Available in Surface Mount D2PAK Package.

Diagrams

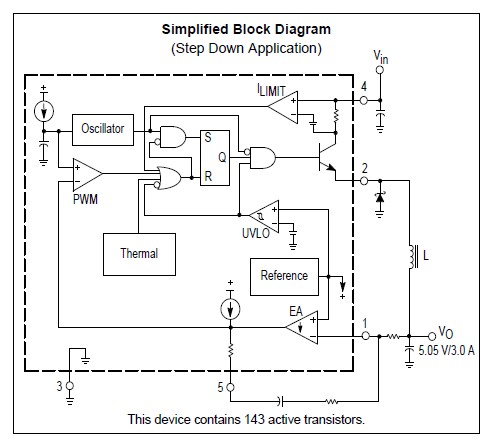

MC33166T Simplified Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

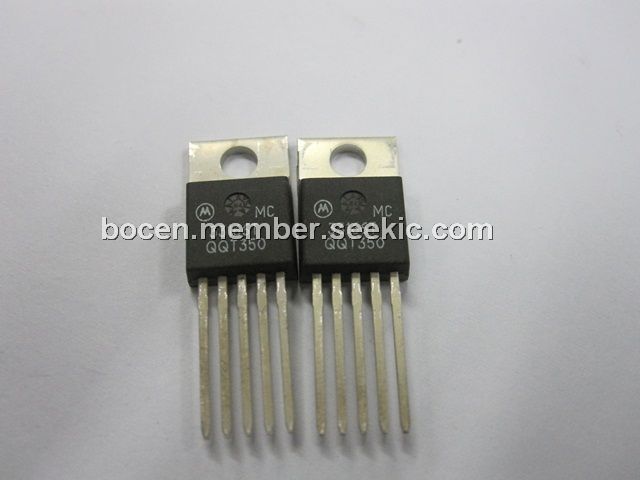

MC33166T
MC33166T

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A

Data Sheet

Negotiable
MC33166TG
MC33166TG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A Buck/Boost/Inverting

Data Sheet

0-1: $1.67
1-25: $1.51
25-100: $1.21
100-500: $1.10
MC33166THG
MC33166THG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A Buck/Boost/Inverting

Data Sheet

0-1: $1.62
1-25: $1.31
25-100: $1.18
100-500: $0.92
MC33166TVG
MC33166TVG

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A Buck/Boost/Inverting

Data Sheet

0-1: $1.62
1-25: $1.31
25-100: $1.18
100-500: $0.92
MC33166TH
MC33166TH

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A

Data Sheet

Negotiable
MC33166TV
MC33166TV

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 3A

Data Sheet

Negotiable
