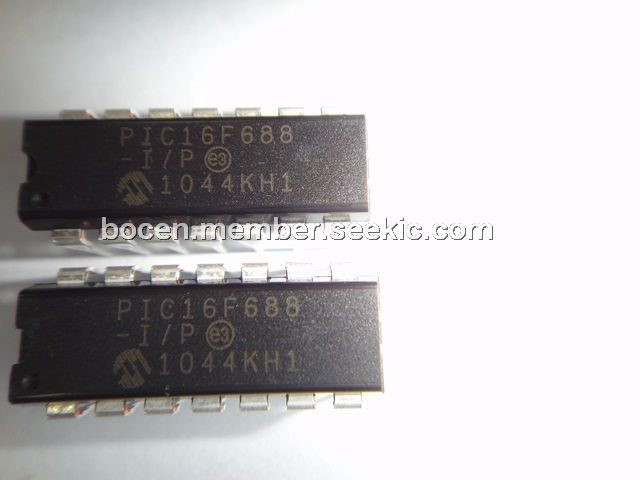

PIC16F688-I/P

DIP-14, Flash-Based, 8-Bit CMOS Microcontrollers, nanoWatt Technology, -0.3V to +6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.15~1.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.15~1.46

PartNumber:: PIC16F688-I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Apple Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-22

From Other Seller

Part Number:PIC16F688-I/P
US $1.15 - 1.46
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16F688-I/P is a 14-pin flash-based, 8-Bit CMOS microcontroller with nanoWatt technology. It is available in 14-pin PDIP, SOIC, TSSOP and QFN packages.

Parametrics

PIC16F688-I/P absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD+0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:95 mA; (8)Maximum current into VDD pin:95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin :25 mA; (13)Maximum current sunk by PORTA and PORTC (combined):90 mA; (14)Maximum current sourced PORTA and PORTC (combined):90 mA.

Features

PIC16F688-I/P features: (1)Only 35 Instructions to Learn: All single-cycle instructions except branches; (2)Operating Speed: DC-20 MHz oscillator/clock input; DC-200 ns instruction cycle; (3)Interrupt Capability; (4)8-level Deep Hardware Stack; (5)Direct, Indirect and Relative Addressing modes; (6)Precision Internal Oscillator: Factory calibrated to ±1%; Software selectable frequency range of 8 MHz to 125 kHz; Software tunable; Two-Speed Start-Up mode; Crystal fail detect for critical applications; Clock mode switching during operation for power savings; (7)Power-Saving Sleep mode; (8)Wide Operating Voltage Range (2.0V-5.5V); (9)Industrial and Extended Temperature Range; (10)Power-on Reset (POR); (11)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (12)Brown-out Reset (BOR) with Software Control Option; (13)Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (14)Multiplexed Master Clear with Weak Pull-up or Input Only Pin; (15)Programmable Code Protection; (16)High-Endurance Flash/EEPROM Cell: 100,000 write Flash endurance; 1,000,000 write EEPROM endurance; Flash/Data EEPROM retention: > 40 years.
