Product Summary

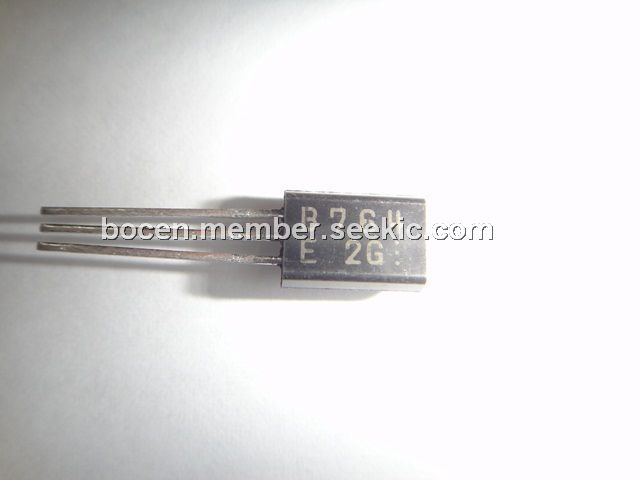

The 2SB764-E is a voltage regulator with relay lamp driver electrical equipment applications.
Parametrics
2SB764-E absolute maximum ratings: (1)Military/High-Rel: N; (2)V(BR)CEO (V): 50; (3)V(BR)CBO (V): 60; (4)I(C) Max. (A): 1.0; (5)Absolute Max. Power Diss. (W): 900m; (6)Maximum Operating Temp (шC): 150; (7)I(CBO) Max. (A): 1.0u; (8)@V(CBO) (V) (Test Condition): 50; (9)V(CE)sat Max. (V): 700m; (10)@I(C) (A) (Test Condition): 500m; (11)@I(B) (A) (Test Condition): 50m; (12)h(FE) Min. Current gain.: 100; (13)h(FE) Max. Current gain.: 200; (14)@I(C) (A) (Test Condition): 50m; (15)@V(CE) (V) (Test Condition): 2.0; (16)f(T) Min. (Hz) Transition Freq: 150MВ; (17)@I(C) (A) (Test Condition): 50m; (18)@V(CE) (V) (Test Condition): 10; (19)C(obo) (Max) (F): 20pВ; (20)@V(CB) (V) (Test Condition): 10; (21)@Freq. (Hz) (Test Condition): 1.0M; (22)Package Style: TO-92var; (23)Mounting Style: T.
Features
2SB764-E features: (1)TRANSISTOR, PNP, 50V, 1A, TO-226 ; (2)Transistor Polarity: P Channel ; (3)Collector Emitter Voltage V(br)ceo: -50V ; (4)Gain Bandwidth ft Typ: 150MHz ; (5)Power Dissipation Pd: 900mW ; (6)DC Collector Current: -1A ; (7)Transistor Case Style: TO-226 ; (8)No. of Pins: 3 ; (9)DC Current Gain hFE: 200.

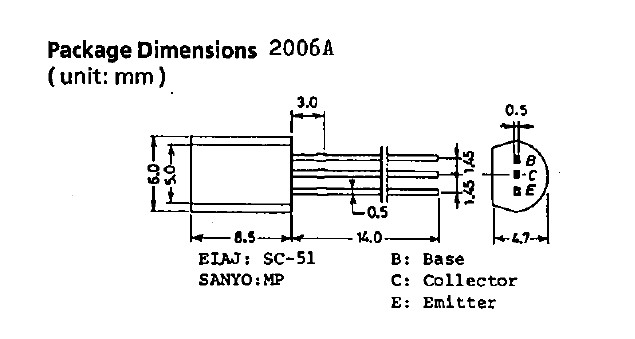

Diagrams
 |
