Product Summary

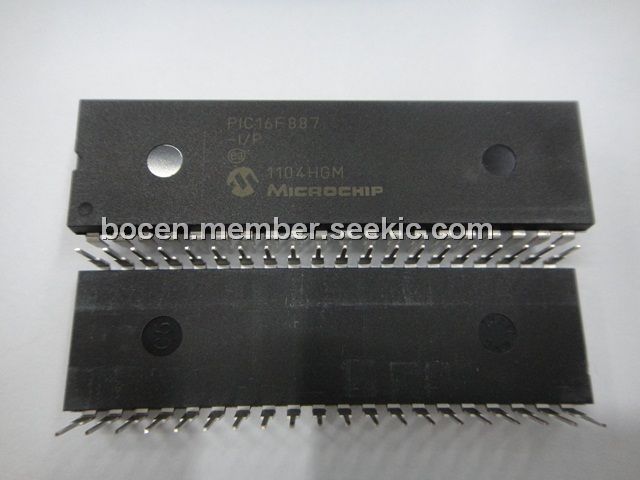

The PIC16F887-I/P is a 40/44-Pin, Enhanced Flash-Based 8-Bit CMOS Microcontroller with nanoWatt Technology. It is available in a 40-pin PDIP and 44-pin QFN and TQFP packages.

Parametrics

PIC16F887-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40° to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 95 mA; (8)Maximum current into VDD pin: 95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports (combined): 90 mA; (14)Maximum current sourced by all ports (combined): 90 mA.

Features

PIC16F887-I/P features: (1)Interrupt Capability; (2)8-Level Deep Hardware Stack; (3)Direct, Indirect and Relative Addressing modes; (4)Power-Saving Sleep mode; (5)Wide Operating Voltage Range (2.0V-5.5V); (6)Industrial and Extended Temperature Range; (7)Power-on Reset (POR); (8)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (9)Brown-out Reset (BOR) with Software Control Option; (10)Multiplexed Master Clear with Pull-up/Input Pin; (11)Programmable Code Protection; (12)Program Memory Read/Write during run time; (13)In-Circuit Debugger (on board); (14)High current source/sink for direct LED drive; (15)Interrupt-on-Change pin; (16)Individually programmable weak pull-ups; (17)Ultra Low-Power Wake-up (ULPWU); (18)Timer2: 8-bit Timer/Counter with 8-bit Period Register, Prescaler and Postscaler.etc.

Diagrams

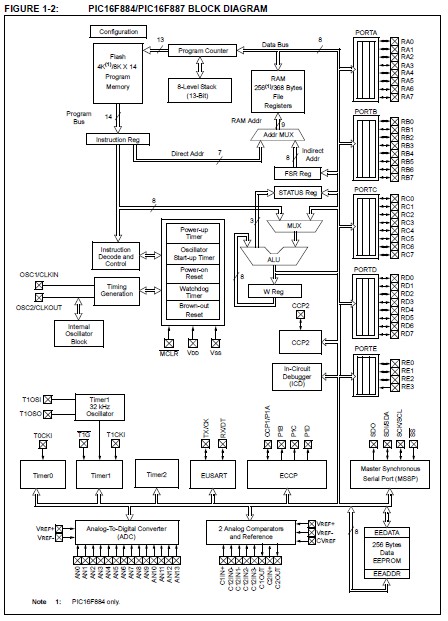

PIC16F887-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC16F887-I/P
PIC16F887-I/P
Microchip Technology
8-bit Microcontrollers (MCU) 14KB Flash 368 RAM 36 I/O
Data Sheet
0-1: $1.65
1-10: $1.32
10-25: $1.28
25-100: $1.25
PIC16F887-I/PT
PIC16F887-I/PT
Microchip Technology
8-bit Microcontrollers (MCU) 14KB Flash 368 RAM 36 I/O
Data Sheet
0-1: $1.66
1-10: $1.33
10-25: $1.29
25-100: $1.25
