Product Summary

The ATMEGA32A-PU is a microcontroller with 32kbytes in-system programmable flash.

Parametrics

ATMEGA32A-PU absolute maximum ratings: (1)Data Bus Width: 8 bit; (2)Maximum Clock Frequency: 16 MHz; (3)Program Memory Size: 32 KB; (4)Data RAM Size: 2 KB; (5)Data ROM Size: 1024 B; (6)On-Chip ADC: Yes; (7)Number of Programmable I/Os: 32; (8)Number of Timers: 3; (9)Package / Case: PDIP-40; (10)Mounting Style: Through Hole; (11)Height: 4.83 mm; (12)Interface Type: 2-Wire, SPI, USART; (13)Length: 52.58 mm; (14)Maximum Operating Temperature: + 85℃; (15)Minimum Operating Temperature: - 40℃; (16)Packaging: Tube; (17)Program Memory Type: Flash; (18)Standard Pack Qty: 10; (19)Supply Voltage (Max): 5.5 V; (20)Supply Voltage (Min): 2.7 V; (21)Width: 13.97 mm.

Features

ATMEGA32A-PU features: (1)High-performance, Low-power Atmel VR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Special Microcontroller Features. Power-on Reset and Programmable Brown-out Detection; Internal Calibrated RC Oscillator; External and Internal Interrupt Sources; Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby; (6)Operating Voltages, 2.7 - 5.5V; (7)Speed Grades, 0 - 16MHz; (8)Power Consumption at 1 MHz, 3V, 25℃. Active: 0.6mA; Idle Mode: 0.2mA; Power-down Mode: < 1μA.

Diagrams

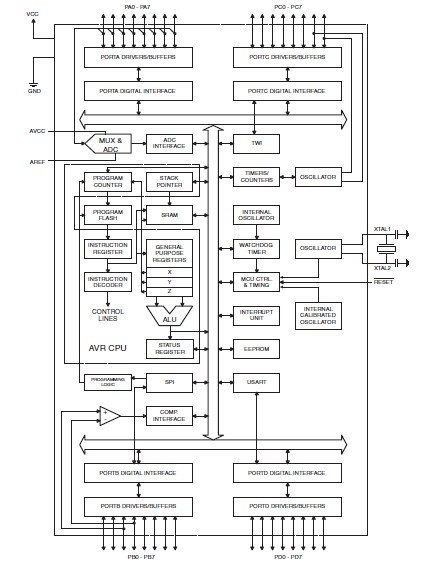

ATMEGA32A-PU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

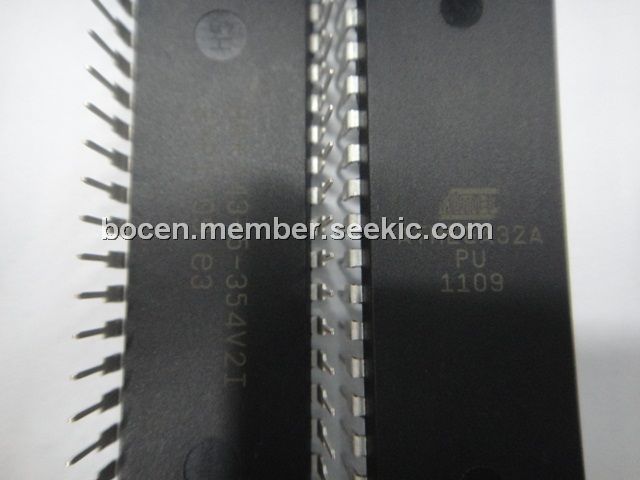

ATMEGA32A-PU
ATMEGA32A-PU

Atmel

8-bit Microcontrollers (MCU) 32KB In-system Flash 2.7V - 5.5V

Data Sheet

0-1: $2.27
1-10: $2.17
10-25: $2.02
25-100: $1.64
