Product Summary

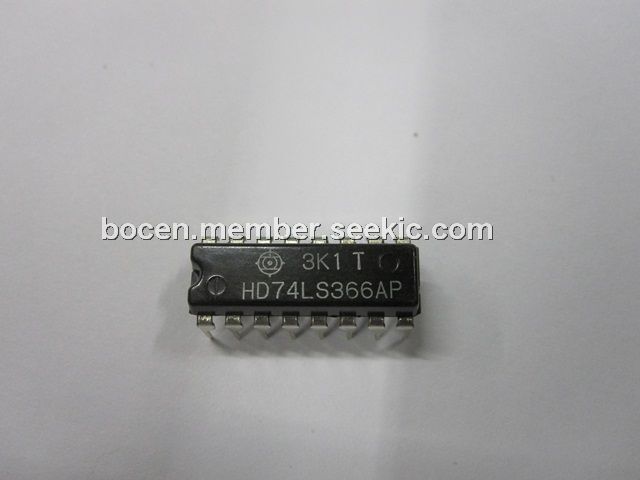

The HD74LS366AP is a hex bus driver.

Parametrics

HD74LS366AP absolute maximum ratings: (1)Supply voltage: 7.0V; (2)Input voltage: 7.0V; (3)Output voltage: 5.5V; (4)Operating temperature: -20 to +75℃; (5)Storage temperature: -65 to +150℃.

Features

HD74LS366AP faetures: (1)Input voltage, VIH: 2.0V; (2)Output voltage, VOH: 2.4V; (3)Output current, IZOH: 20μA; (4)Short circuit output current, IDF: -40 to -225mA; (5)Input clamp voltage: -1.5A.

Diagrams

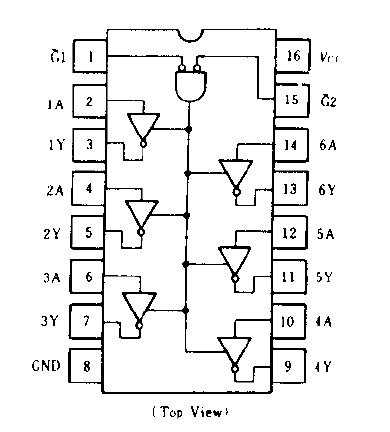

HD74LS366AP pin arrangement
