Product Summary

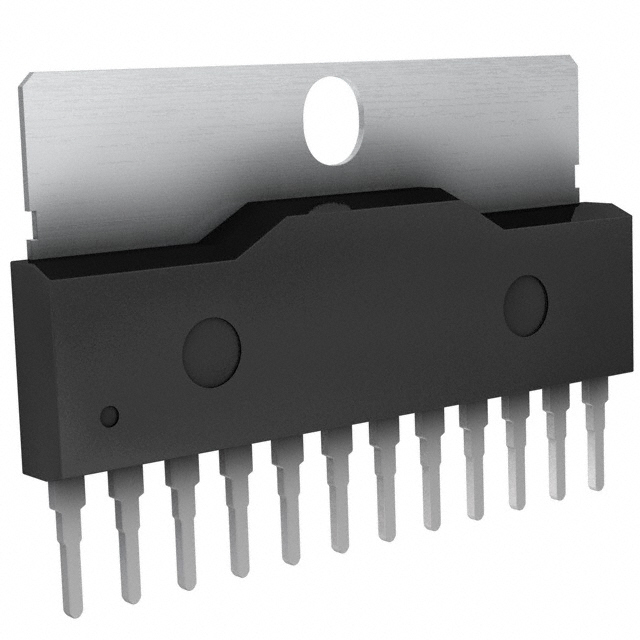

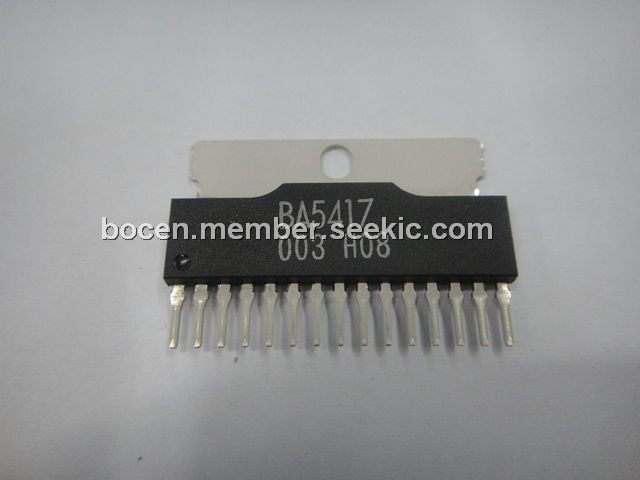

The BA5417 is a high-output dual power amplifier. The BA5417 is a 6 to 15V-compatible dual power amplifier developed for use radio cassette players. The BA5417 is equipped with standby switching functions for excellent total harmonic distortion and other basic characteristics.
Parametrics
BA5417 absolute maximum ratings: (1)Power supply voltage VCC: 20.1 V; (2)Power dissipation Pd: 15.2 W; (3)Operating temperature Topr: -20 ~ +75 ℃; (4)Storage temperature Tstg: -55 ~ +150 ℃.
Features
BA5417 features: (1)High output. POUT = 2.8W (VCC = 9V, RL 3W, THD = 10%)POUT = 5.0W (VCC = 12V, RL 3W, THD = 10%); (2)Excellent audio quality. THD = 0.1% (f = 1kHz, PO = 0.5W). VNO = 0.3mVrms (Rg = 10kW). RR = 55dB (fRR = 100Hz); (3)Wide supply voltage operating range (VCC = 6.0V to 15.0V); (4)Switching noise ("pop" noise) generated when the power is switched on and off is small; (5)Ripple mixing when motor starts has been prevented; (6)Built-in thermal shutdown circuit; (7)Built-in standby switch. Output is not influenced by the standby pin voltage; (8)Soft clipping.
Diagrams
