Product Summary

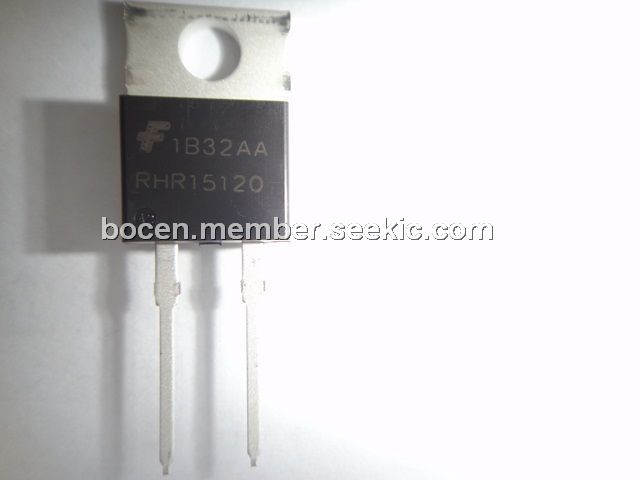

The RHRP15120 is a hyperfast diode with soft recovery characteristics (trr < 65ns). It has half the recovery time of ultrafast diodes and is of silicon nitride passivated ion-implanted epitaxial planar construction. The RHRP15120 is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors. The applications of the RHRP15120 include Switching Power Supplies, Power Switching Circuits, General Purpose
Parametrics
RHRP15120 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 1200 V; (2)Working Peak Reverse Voltage: 1200 V; (3)DC Blocking Voltage: 1200 V; (4)Average Rectified Forward Current: 15 A; (5)Repetitive Peak Surge Current: 30 A; (6)Nonrepetitive Peak Surge Current: (Halfwave, 1 Phase, 60Hz); (7)200 A; (8)Maximum Power Dissipation: 100 W; (9)Avalanche Energy (See Figures 10 and 11): 20 mJ; (10)Operating and Storage Temperature: -65 to 175 ℃.
Features
RHRP15120 features: (1)Hyperfast with Soft Recovery <65ns; (2)Operating Temperature: 175 ℃; (3)Reverse Voltage: 1200V; (4)Avalanche Energy Rated; (5)Planar Construction.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RHRP15120 |
Fairchild Semiconductor |
Rectifiers 15A 1200V |
Data Sheet |
|
|
||||||||||||
|
RHRP15120_Q |
Fairchild Semiconductor |
Rectifiers 15A 1200V |
Data Sheet |
Negotiable |
|
||||||||||||
