Product Summary

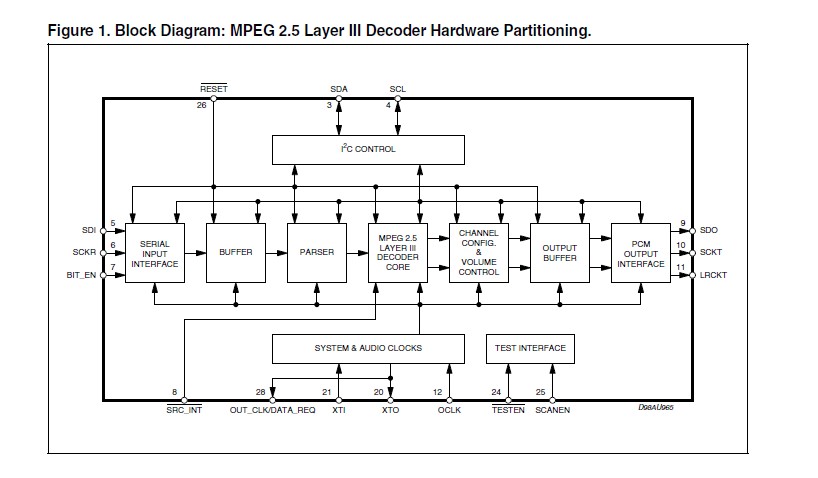

The STA013 is a MPEG 2.5 layer III audio decoder. The STA013 is a fully integrated high flexibility MPEG Layer III Audio Decoder, capable of decoding Layer III compressed elementary streams, as specified in MPEG 1 and MPEG 2 ISO standards. The STA013 decodes also elementary streams compressed by using low sampling rates, as specified by MPEG 2.5. STA013 receives the input data through a Serial Input Interface. The decoded signal of the STA013 is a stereo, mono, or dual channel digital output that can be sent directly to a D/A converter, by the PCM Output Interface. This interface is software programmable to adapt the STA013 digital output to the most common DACs architectures used on the market.

Parametrics

STA013 absolute maximum ratings: (1)VDD Power Supply: -0.3 to 4 V; (2)Vi Voltage on Input pins: -0.3 to VDD +0.3 V; (3)VO Voltage on output pins: -0.3 to VDD +0.3 V; (4)Tstg Storage Temperature: -40 to +150 ℃; (5)Toper Operative ambient temp: -40 to +85 (*) ℃; (6)Tj Operating Junction Temperature: -40 to 125 ℃.

Features

STA013 features: (1)Decodes layer iii stereo channels, dual channel, single channel (MONO); (2)Supporting all the mpeg 1 & 2 sampling frequencies and the extension to mpeg 2.5: 48, 44.1, 32, 24, 22.05, 16, 12, 11. 025, 8 KHz; (3)Accepts mpeg 2.5 layer iii elementary compressed bitstream with data rate from 8 kbit/s up to 320 kbit/s; (4)Digital volume control; (5)Digital bass & treble control serial bitstream input interface; (6)Ancillary data extraction via i2c interface.; (7)Serial pcm output interface (i2s and other formats); (8)PLL for internal clock and for output pcm clock generation; (9)Low power consumption: 85mW AT 2.4V; (10)CRC check and synchronisation error detection with software indicators.
