Product Summary

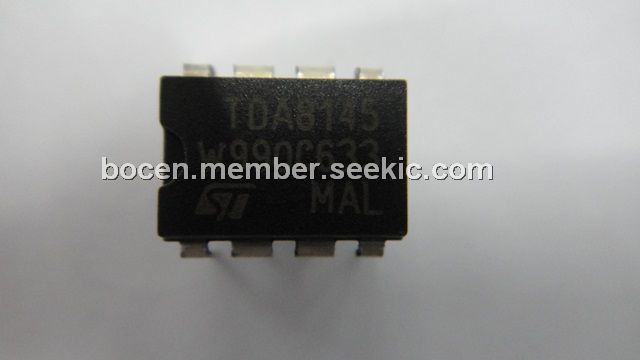

The TDA8145 is a TV east/west correction circuit for square tube. The TDA8145 is a monolithic integrated circuit in a 8 pin minidip plastic package designed for use in the square C.R.T. east-west pin-cushion correction by driving a diode modulator in TV and monitor applications.
Parametrics
TDA8145 absolute maximum ratings: (1)Vs Supply Voltage: 35 V; (2)Is Supply Current: 500 mA; (3)Ptot Power Dissipation at Tamb = 50 ℃: 500 mW; (4)Tstg, Tj Storage and Junction Temperature: – 25 to 150 ℃.
Features
TDA8145 features: (1)Low dissipation; (2)Square generator for parabolic current specially designed for squarE C.R.T. correction; (3)External keystone adjustment(symmetry of the parabola); (4)Input for dynamic field correction(beam current change); (5)Static picture width adjustment; (6)PULSE-WIDTH MODULATOR; (7)Final stage d-class with energy redelivery; (8)Parasitic parabola suppression, during flyback time of the vertical sawtooth.

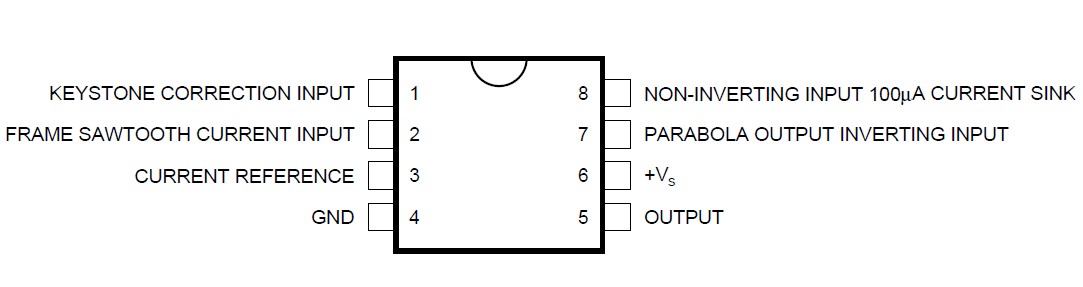

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA8145 |
STMicroelectronics |
Video ICs East/West Correction |
Data Sheet |
Negotiable |
|
||||
