Product Summary

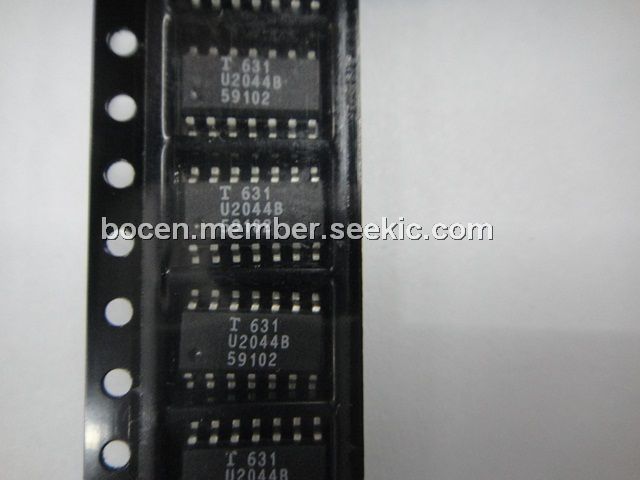

The integrated circuit U2044B-MFPG3Y is used in relay-controlled automotive flashers. With two output stages, each side of the vehicle is controlled separately. A left and a right direction indicator input with only a small control current makes switch contacts for small loads possible.
Parametrics
U2044B-MFPG3Y absolute maximum ratings: (1)Supply voltage, 1 min, pins 5, 9 and 12, VS: 24 V; (2)Junction temperature, Tj: 150℃; (3)Ambient temperature range, Tamb: –40 to +100℃; (4)Storage temperature range, Tstg: –55 to +150℃.
Features
U2044B-MFPG3Y features: (1)Temperature and Supply Voltage Compensated Flashing Frequency; (2)Frequency Doubling Indicates Lamp Outage; (3)Two Relay Driver Outputs with High Current-carrying Capacity and Low Saturation Voltage; (4)Minimum Lamp Load for Flasher Operation: ≥ 1W; (5)Very Low Susceptibility to EMI; (6)Protection According to ISO/TR7637/1 Level 4; (7)Extremely Low Current Consumption < 10 μA (with Switches Open); (8)Reverse Polarity Protection; (9)Three Control Inputs: Left, Right and Hazard Warning.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 U2044B-MFPG3Y |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Dual Output Flasher |
Data Sheet |
Negotiable |
|
||||
 |
U2044B-MFPG3Y-66 |
|
IC FLASH CONTROL 10W DUAL 14SOIC |
Data Sheet |
Negotiable |
|
||||
