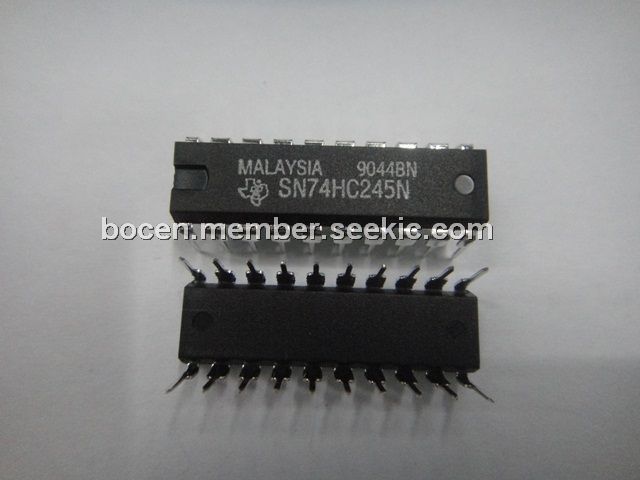

Product Summary

The SN74HC245N is a octal BUS transceiver with 3-state outputs. The octal bus transceiver SN74HC245N is designed for asynchronous two-way communication between data buses. The control-function implementation of the SN74HC245N minimizes external timing requirements. The SN74HC245N allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the SN74HC245N so that the buses are effectively isolated.

Parametrics

SN74HC245N absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA.

Features

SN74HC245N features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 12 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

Diagrams

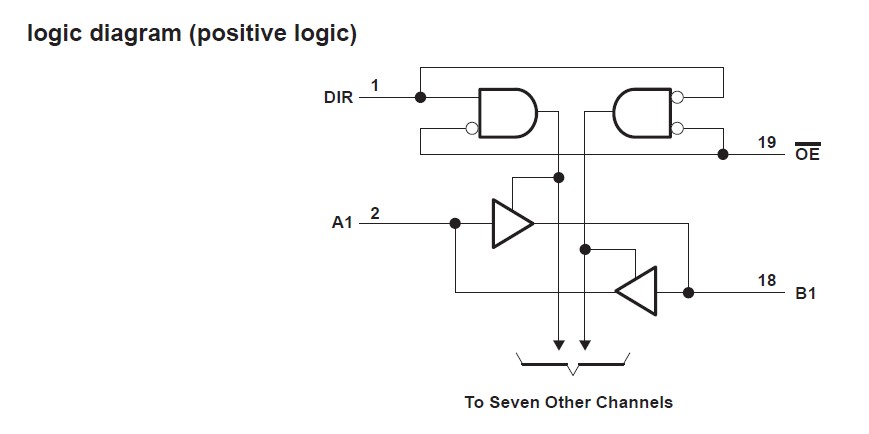

SN74HC245N logic diagram
