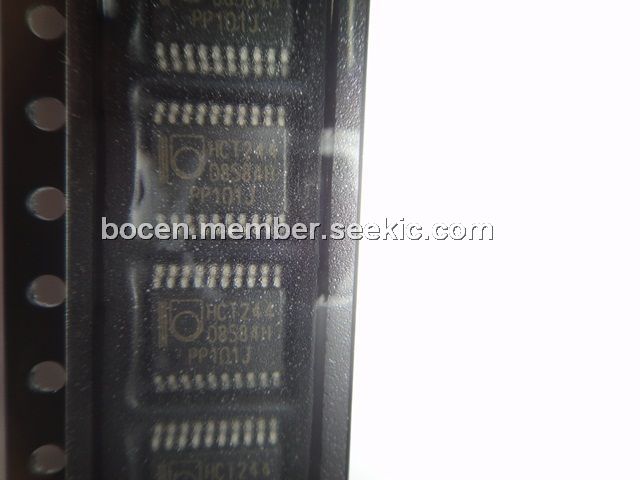

Product Summary

The 74HCT244PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT244PW is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high impedance OFF-state. The 244 is identical to the 240 but has non-inverting outputs.

Parametrics

74HCT244PW absolute maximum ratings: (1)tPHL/ tPLH propagation delay, CL = 15 pF; VCC = 5 V:11 ns; (2)CI input capacitance:3.5 pF; (3)CPD power dissipation capacitance per buffer: 35 pF.

Features

74HCT244PW features: (1)Output capability: bus driver; (2)ICC category: MSI.

Diagrams

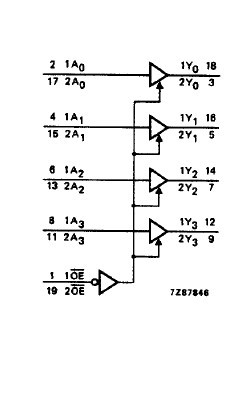

74HCT244PW Logic symbol
