Product Summary

The IRL8113 is a HEXFET Power MOSFET.

Parametrics

IRL8113 absolute maximum ratings: (1)Drain to Source Voltage (Vdss): 30V; (2)Current - Continuous Drain (Id) @ 25℃: 105A; (3)Rds On (Max) @ Id, Vgs: 6 mOhm @ 21A, 10V; (4)Input Capacitance (Ciss) @ Vds: 2840pF @ 15V; (5)Power Max: 110W; (6)Packaging: Tube; (7)Gate Charge (Qg) @ Vgs: 35nC @ 4.5V; (8)Package / Case: TO-220-3; (9)FET Feature: Logic Level Gate; (10)Lead Free Status: Contains Lead.

Features

IRL8113 features: (1)Low RDS(on) at 4.5V VGS; (2)Low Gate Charge; (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

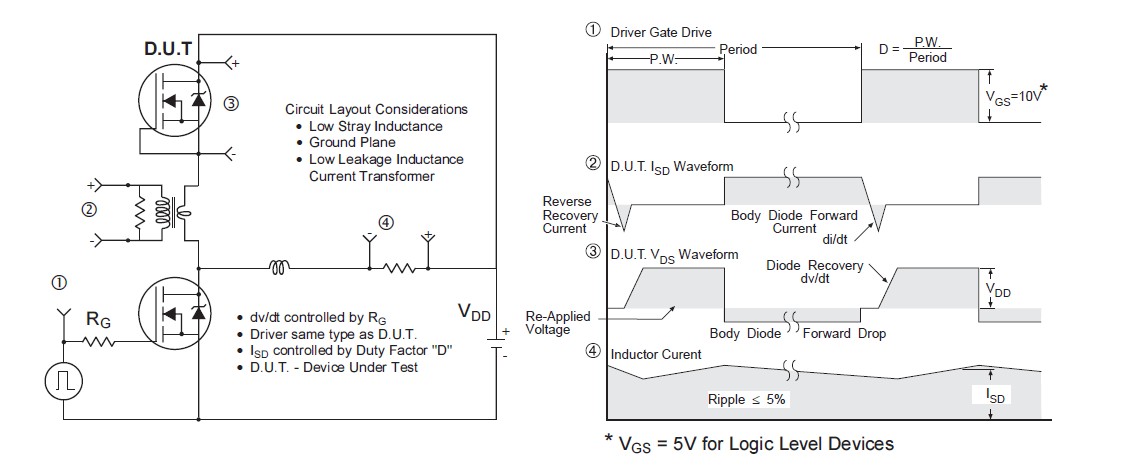

IRL8113 Peak diode recovery dv/dt test circuit for N-channel

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

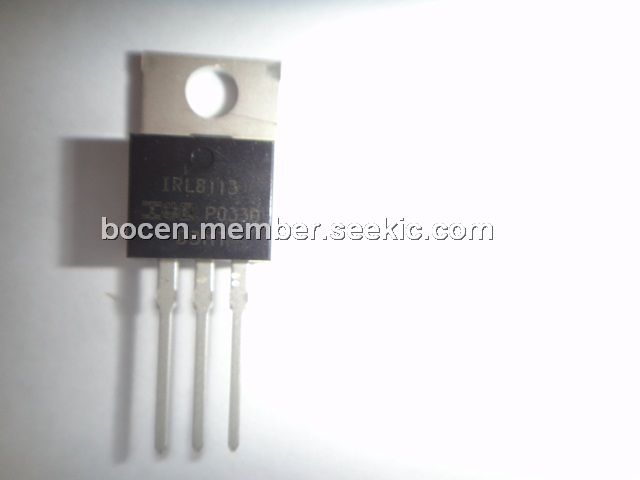

IRL8113
IRL8113

MOSFET N-CH 30V 105A TO-220AB
Data Sheet
Negotiable
IRL8113L
IRL8113L

MOSFET N-CH 30V 105A TO-262
Data Sheet
0-250: $1.21
IRL8113SPBF
IRL8113SPBF
International Rectifier
MOSFET MOSFT 30V 105A 6mOhm 23nC Qg log lvl
Data Sheet
0-1: $1.39
1-25: $0.90
25-100: $0.59
100-250: $0.59
IRL8113LPBF
IRL8113LPBF
International Rectifier
MOSFET MOSFT 30V 105A 6mOhm 23nC Log Lvl
Data Sheet
0-1: $1.48
1-25: $0.95
25-100: $0.69
100-250: $0.65
IRL8113PBF
IRL8113PBF
International Rectifier
MOSFET MOSFT 30V 105A 23nC 6mOhm Qg log lvl
Data Sheet
0-1: $1.44
1-25: $0.93
25-100: $0.67
100-250: $0.63
IRL8113S
IRL8113S

MOSFET N-CH 30V 105A D2PAK
Data Sheet
Negotiable
IRL8113STRLPBF
IRL8113STRLPBF
International Rectifier
MOSFET MOSFT 30V 105A 6mOhm 23nC Qg log lvl
Data Sheet
0-1: $1.39
1-25: $0.90
25-100: $0.65
100-250: $0.61
IRL8113STRL
IRL8113STRL

MOSFET N-CH 30V 105A D2PAK
Data Sheet
0-800: $0.91
