Product Summary

The ADC0820BCN is a 8-bit high speed μp compatible A/D converter with track/hold function. By using a half-flash conversion technique, the 8-bit ADC0820BCN CMOS A/D offers a 1.5 μs conversion time and dissipates only 75 mW of power. The half-flash technique of the ADC0820BCN consists of 32 comparators, a most significant 4-bit ADC and a least significant 4-bit ADC.

Parametrics

ADC0820BCN absolute maximum ratings: (1)Supply Voltage (VCC): 10V; (2)Logic Control Inputs: -0.2V to VCC +0.2V; (3)Voltage at Other Inputs and Output: -0.2V to VCC +0.2V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Package Dissipation at TA = 25℃: 875 mW; (6)Input Current at Any Pin: 1 mA; (7)Package Input Current: 4 mA; (8)ESD Susceptability: 1200V; (9)Dual-In-Line Package (ceramic): 300℃; (10)Surface Mount Package Vapor Phase (60 sec.): 215℃; (11)Infrared (15 sec.): 220℃.

Features

ADC0820BCN features: (1)Built-itrack-and-hold function; (2)No missing codes; (3)No external clocking; (4)Single supply VDC; (5)Easy interface to all microprocessors, or operates stand-alone; (6)Latched TRI-STATE output; (7)Logic inputs and outputs meet both MOS and T2L voltage level specifications; (8)Operates ratiometrically or with any reference value equal to or less thaVCC; (9)0V to 5V analog input voltage range with single 5V supply.

Diagrams

ADC0820BCN connection and functional diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

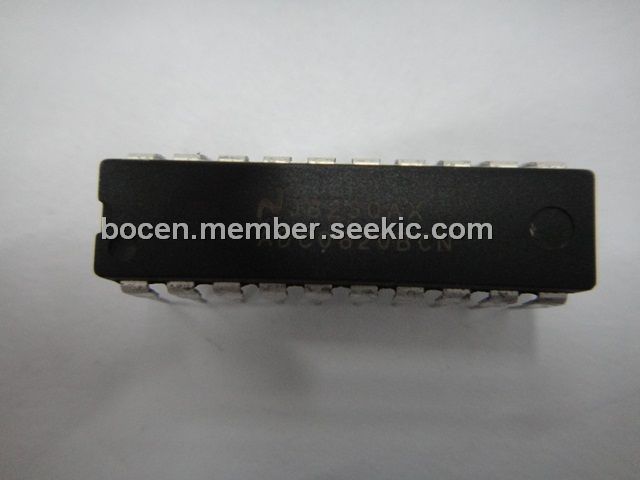

ADC0820BCN
ADC0820BCN
Maxim Integrated Products
ADC (A/D Converters)
Data Sheet
Negotiable
ADC0820BCN+
ADC0820BCN+
Maxim Integrated Products
ADC (A/D Converters)
Data Sheet
Negotiable
