Product Summary
The BAT18 is a planar high performance band-switching diode in a small rectangular plastic SOT23 SMD package. It is used in band switching.
Parametrics
BAT18 absolute maximum ratings: (1)VR continuous reverse voltage: max=35 V; (2)IF continuous forward current: max=100 mA; (3)Tstg storage temperature: -55 to +125 ℃; (4)Tj junction temperature: 125 ℃.
Features
BAT18 features: (1)Continuous reverse voltage: max. 35 V; (2)Continuous forward current: max. 100 mA; (3)Low diode capacitance: max. 1.0 pF; (4)Low diode forward resistance: max. 0.7 Ω.

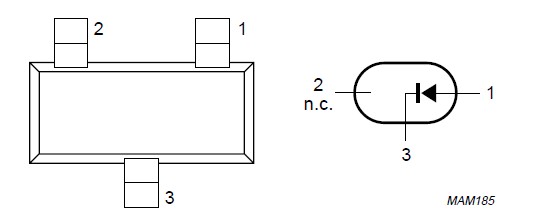

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAT18 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAT18,235 |
NXP Semiconductors |
PIN Diodes 35V 100mA Single |
Data Sheet |
|
|
||||||||||||
|
BAT18-04 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT18-05 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT18-06 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT18,215 |
NXP Semiconductors |
PIN Diodes 35V 100MA |
Data Sheet |
|
|
||||||||||||
