Product Summary

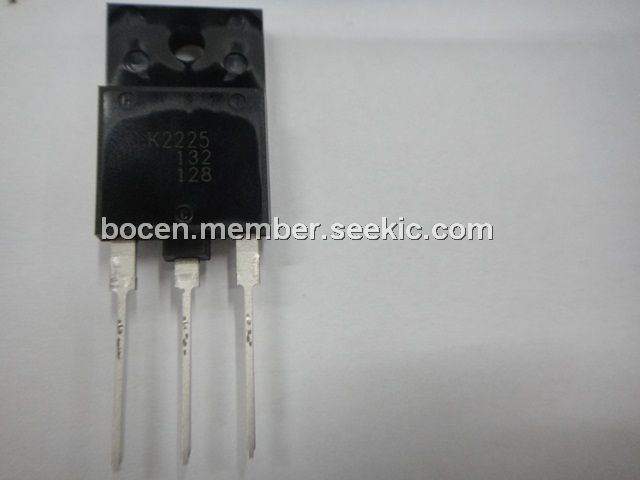

The 2SK2225 is a Silicon N Channel MOS FET.
Parametrics
2SK2225 absolute maximum ratings: (1)Drain to source voltage VDSS: 1500 V; (2)Gate to source voltage VGSS: ±20 V; (3)Drain current ID: 2 A; (4)Drain peak current ID(pulse): 7 A; (5)Body–drain diode reverse drain current IDR: 2 A; (6)Channel dissipation Pch: 50 W; (7)Channel temperature Tch: 150 ℃; (8)Storage temperature Tstg –55 to +150 ℃.
Features
2SK2225 features: (1)High breakdown voltage (VDSS = 1500 V); (2)High speed switching; (3)Low drive current; (4)No Secondary Breakdown; (5)Suitable for Switching regulator, DC-DC converter.

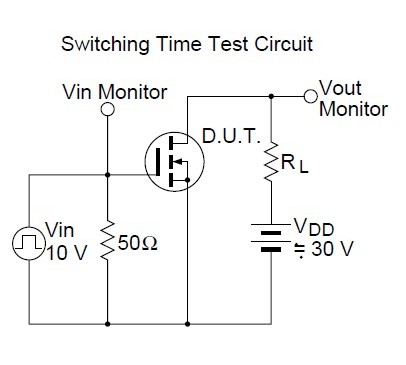

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2225 |
Other |
|
Data Sheet |
Negotiable |
|
||||
