Product Summary

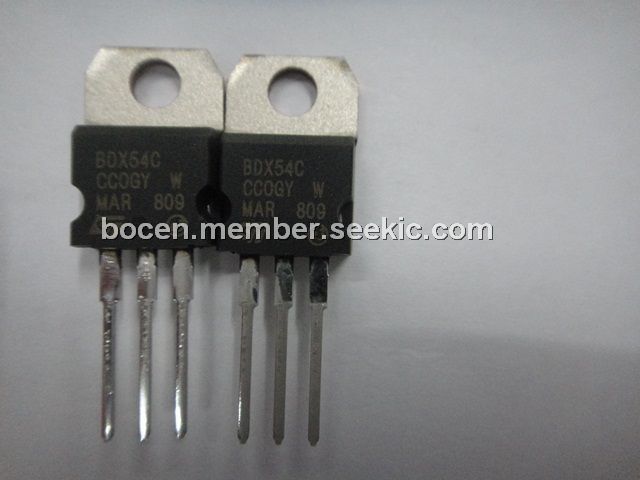

The BDX54C is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. It is intented for use in hammer drivers, audio amplifiers and other medium power linear and switching applications. The applications of the BDX54C include: (1)audio amplifiers; (2)linearand switching industrial equipment.

Parametrics

BDX54C absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO Emitter-base Voltage (IC = 0): 5 V; (4)IC Collector Current: 8 A; (5)ICM Collector Peak Current (repetitive): 12 A; (6)IB Base Current: 0.2 A; (7)Ptot Total Dissipation at Tc ≤ 25 ℃: 60 W; (8)Ts tg Storage Temperature: -65 to 150 ℃; (9)Tj Max. Operating Junction Temperature: 150 ℃.

Features

BDX54C features: ST Microelectronics preferred salestypes.

Diagrams

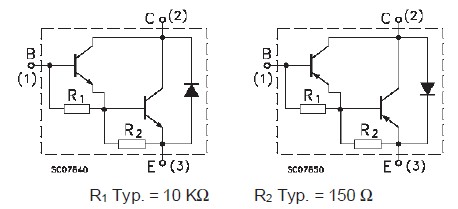

BDX54C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BDX54CG
BDX54CG
ON Semiconductor
Transistors Darlington 8A 100V Bipolar Power PNP
Data Sheet
0-1: $0.53
1-25: $0.43
25-100: $0.37
100-500: $0.29
BDX54C-S
BDX54C-S
Bourns
Transistors Darlington 100V 8A PNP
Data Sheet
0-5950: $0.35
5950-15000: $0.32
BDX54CTU
BDX54CTU
Fairchild Semiconductor
Transistors Darlington PNP Darlington 8A 100V
Data Sheet
0-1: $0.39
1-25: $0.30
25-100: $0.26
100-250: $0.23
BDX54C
BDX54C
Fairchild Semiconductor
Transistors Darlington PNP Darlington 8A 100V
Data Sheet
0-1: $0.32
1-25: $0.29
25-100: $0.25
100-250: $0.22
