Product Summary

The ATTINY2313V-10PU is a 8-bit microcontroller with 2k bytes in-system programmable flash.

Parametrics

ATTINY2313V-10PU absolute maximum ratings: (1)Speed: 10MHz; (2)Power Supply: 1.8 to 5.5V; (3)Operating range: -40 to 85℃.

Features

ATTINY2313V-10PU features: (1)Utilizes the AVRRISC Architecture; (2)AVR High-performance and Low-power RISC Architecture; (3)Data and Non-volatile Program and Data Memories; (4)Special Microcontroller Features, debugWIRE On-chip Debugging. In-System Programmable via SPI Port. External and Internal Interrupt Sources. Low-power Idle, Power-down, and Standby Modes. Enhanced Power-on Reset Circuit. Programmable Brown-out Detection Circuit. Internal Calibrated Oscillator; (5)I/O and Packages. 18 Programmable I/O Lines. 20-pin PDIP, 20-pin SOIC, 20-pad QFN/MLF.

Diagrams

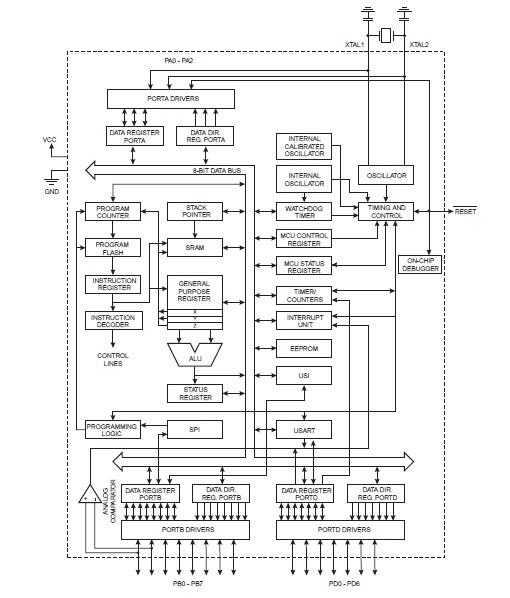

ATTINY2313V-10PU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

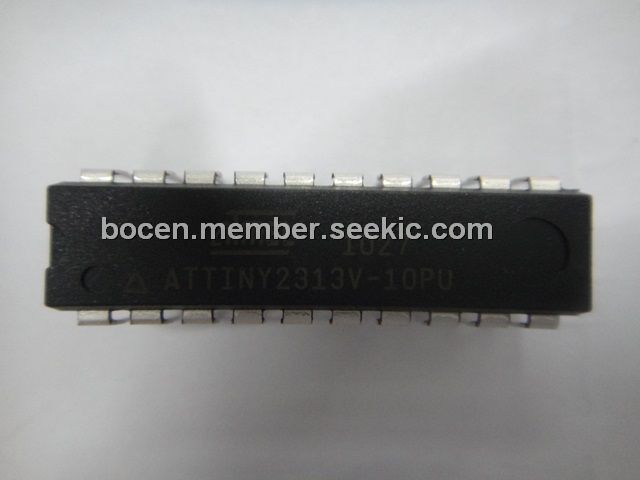

ATtiny2313V-10PU
ATtiny2313V-10PU
Atmel
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins
Data Sheet
0-1: $1.13
1-10: $1.09
10-25: $1.00
25-100: $0.89
