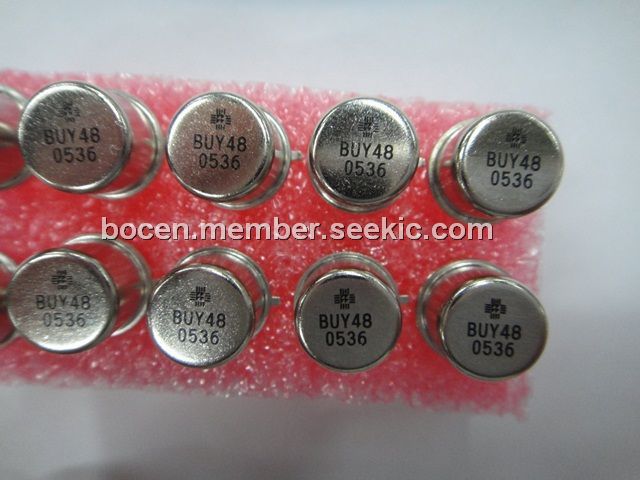

Product Summary
The BUY48 is a high voltage, high current silicon expitaxial planar NPN transistor. It is intended for high voltage, high current, switching applications up to 7A.
Parametrics
BUY48 absolute maximum ratings: (1)VCBO Collector – Base Voltage (IE = 0): 200V; (2)VCEO Collector – Emitter Voltage (IB = 0): 170V; (3)VEBO Emitter – Base Voltage (IC = 0): 6V; (4)IC Collector Current: 7A; (5)ICM Peak Collector Current (repetitive): 10A; (6)Ptot Total Power Dissipation: 1W @Tamb ≤ 25℃; 10W @Tcase ≤ 50℃; (7)TSTG Storage Temperature Range: –65 to +200℃; (8)TJ Maximum Operating Junction Temperature: 200℃.
Features
BUY48 electrical characteristics: (1)ICBO Collector Cut-off Current: max=10μA; (2)V(BR)CBO Collector – Base Breakdown Voltage: min=200V; (3)VCEO(sus) Collector – Emitter Sustaining Voltage: min=170V; (4)VEBO Emitter – Base Voltage: min=6V; (5)VCE(sat) Collector – Emitter Saturation Voltage: max=0.45V at IC = 2A IB = 0.2A; (6)VBE(sat) Base – Emitter Saturation Voltage: max=1.1V at IC = 2A IB = 0.2A; (7)hFE DC Current Gain: min=40, typ=150 at IC = 0.5A VCE = 5V; (8)fT Transition Frequency: typ=90MHz.

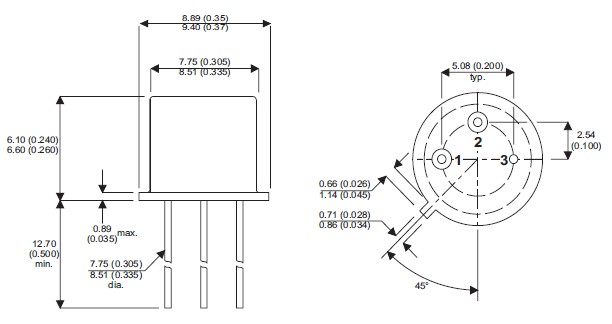

Diagrams
