Product Summary

The IRF2804 is a automotive MOSFET. It is specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175℃ junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features of IRF2804 combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.

Parametrics

IRF2804 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V (Silicon limited):280A; (2)Continuous Drain Current, VGS @ 10V:200A; (3)Continuous Drain Current, VGS @ 10V (Package limited):75A; (4)Pulsed Drain Current:1080A; (5)Power Dissipation:330W; (6)Linear Derating Factor:2.2W/℃ ; (7)Gate-to-Source Voltage:±20V; (8)Single Pulse Avalanche Energy:670mJ ; (9)Single Pulse Avalanche Energy Tested Value:1160mJ; (10)Operating Junction and Storage Temperature Range:-55℃ to +175℃; (11)Soldering Temperature, for 10 seconds:300℃ (1.6mm from case ).

Features

IRF2804 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Repetitive Avalanche Allowed up to Tjmax.

Diagrams

IRF2804 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

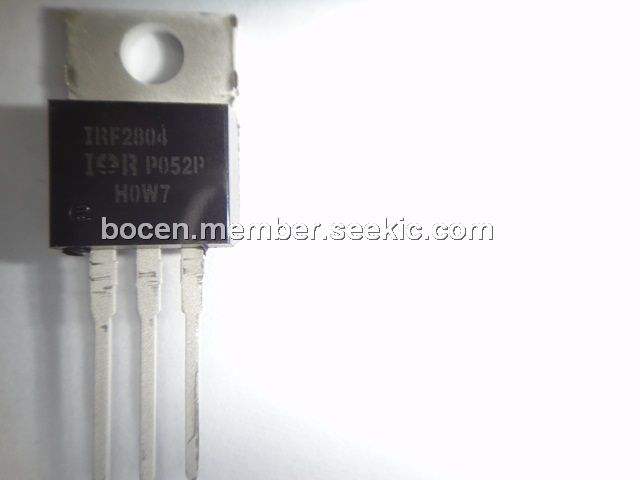

IRF2804
IRF2804

MOSFET N-CH 40V 75A TO-220AB
Data Sheet
0-150: $2.28
IRF2804L
IRF2804L
International Rectifier
MOSFET N-CH 40V 75A TO-262
Data Sheet
1-150: $2.32
IRF2804LPBF
IRF2804LPBF
International Rectifier
MOSFET MOSFT 40V 280A 2.3mOhm 160nC
Data Sheet
0-1: $3.40
1-25: $2.33
25-100: $1.73
100-250: $1.66
IRF2804PBF
IRF2804PBF
International Rectifier
MOSFET MOSFT 40V 280A 2.3mOhm 160nC Qg
Data Sheet
0-1: $3.22
1-25: $2.20
25-100: $1.64
100-250: $1.57
IRF2804S
IRF2804S
Other

Data Sheet
Negotiable

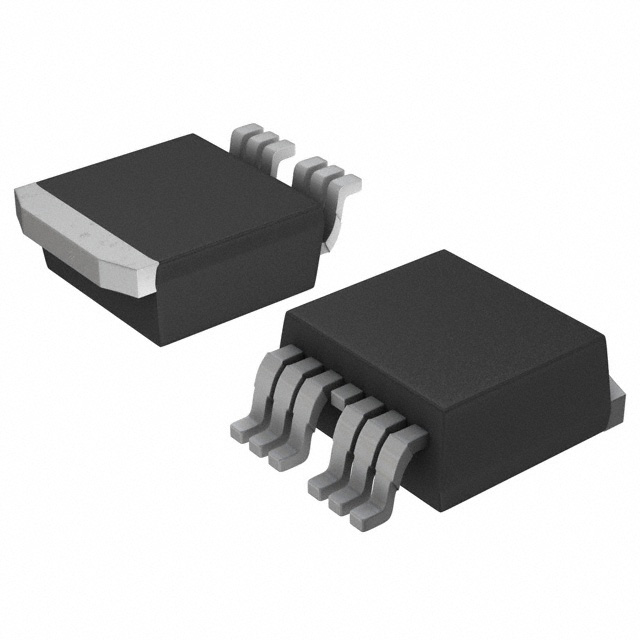

IRF2804S-7P
IRF2804S-7P

MOSFET N-CH 40V 160A D2PAK7
Data Sheet
Negotiable
IRF2804S-7PPBF
IRF2804S-7PPBF
International Rectifier
MOSFET
Data Sheet
0-1: $3.58
1-25: $2.45
25-100: $1.94
100-250: $1.93
IRF2804SPBF
IRF2804SPBF
International Rectifier
MOSFET
Data Sheet
0-170: $1.83
170-250: $1.81
250-500: $1.32
