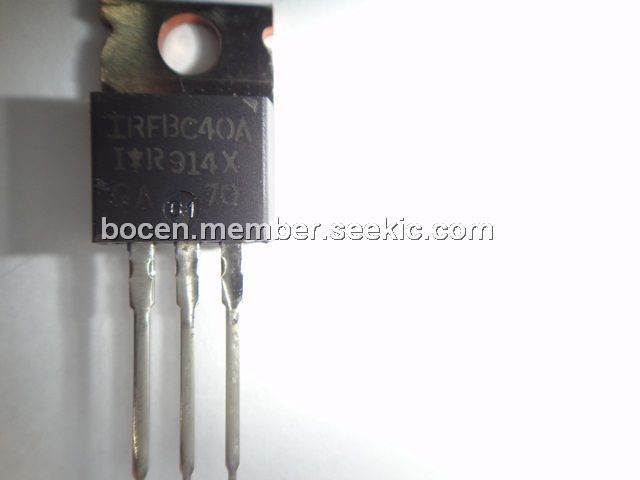

Product Summary

The IRFBC40A is a HEXFET Power MOSFET. The applications of it include: (1)Switch Mode Power Supply ( SMPS ); (2)Uninterruptable Power Supply; (3)High speed power switching; (4)Lead-Free.

Parametrics

IRFBC40A absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 6.2A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 3.9 A; (3)IDM Pulsed Drain Current: 25 A; (4)PD @TC = 25℃ Power Dissipation: 125 W; (5)Linear Derating Factor: 1.0 W/℃; (6)VGS Gate-to-Source Voltage: ±30 V; (7)dv/dt Peak Diode Recovery dv/dt: 6.0 V/ns; (8)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 150℃; (9)Soldering Temperature, for 10 seconds: 300 (1.6mm from case).

Features

IRFBC40A benefits: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and Dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss Specified.

Diagrams

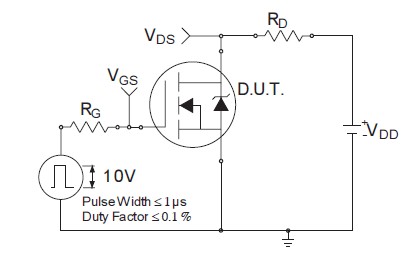

IRFBC40A test circuit
