Product Summary
The M54587FP is an eight-circuit collector-current synchronized Darlington transistor. The circuit is made of PNP and NPN transistors. It performs high-current driving with extremely low input-current supply. The applications of the M54587FP include interfaces between microcomputers and high-voltage, highcurrent drive systems, drives of relays and MOS-bipolar logic IC interfaces.
Parametrics
M54587FP absolute maximum ratings: (1)Supply voltage VCC: 10 V; (2)Collector-emitter voltage VCEO: –0.5 ~ +50 V; (3)Input voltage VI: –0.5 ~ VCC V; (4)Collector current IC: 500mA; (5)Clamping diode forward current IF: 500mA; (6)Clamping diode reverse voltage VR: 50V; (7)Power dissipation Pd: 1.79/1.1 W; (8)Operating temperature Topr: –20 ~ +75℃; (9)Storage temperature Tstg: –55 ~ +125℃.
Features
M54587FP features: (1)High breakdown voltage (BVCEO ≥ 50V); (2)High-current driving (IC(max) = 500mA); (3)“L” active level input; (4)With input diode; (5)With clamping diodes; (6)Wide operating temperature range (Ta = –20 to +75℃).

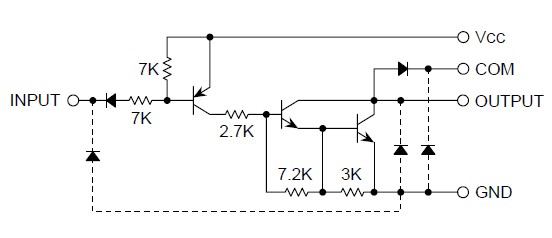

Diagrams

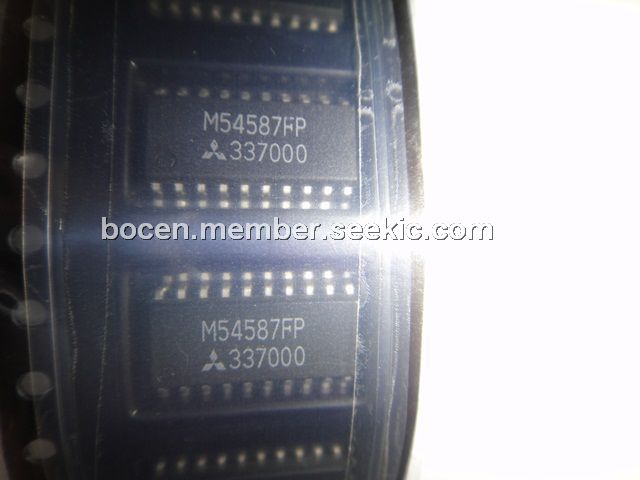

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M54587FP |
Other |
|
Data Sheet |
Negotiable |
|
||||
