Product Summary

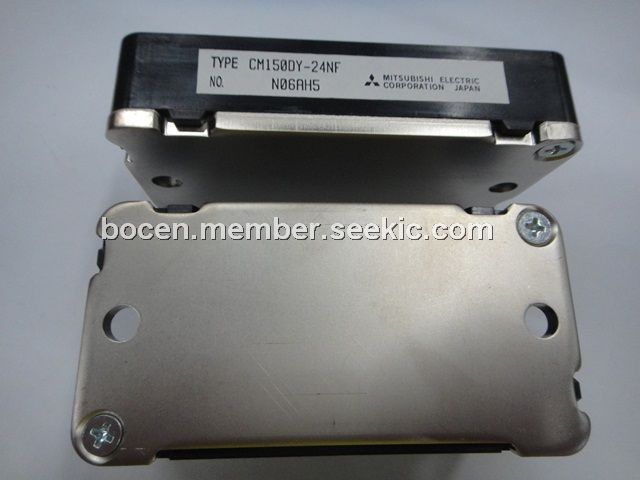

The CM150DY-24NF is a mitsubishi IGBT module.

Parametrics

CM150DY-24NF absolute maximum ratings: (1)Power Dissipation Pd: 780W; (2)Collector Emitter Voltage V(br)ceo: 1.2kV; (3)Continuous Collector Current Ic: 150A; (4)Collector Emitter Saturation Voltage Vce(sat): 2.5V; (5)Current Rating: 150A; (6)Voltage Rating: 1.2kV.

Features

CM150DY-24NF features: (1)Dual IGBTMOD NF-Series Module; (2)150 Amperes/1200 Volts; (3)Low Drive Power; (4)Low VCE(sat); (5)Discrete Super-Fast Recovery Free-Wheel Diode; (6)Isolated Baseplate for Easy Heat Sinking.

Diagrams

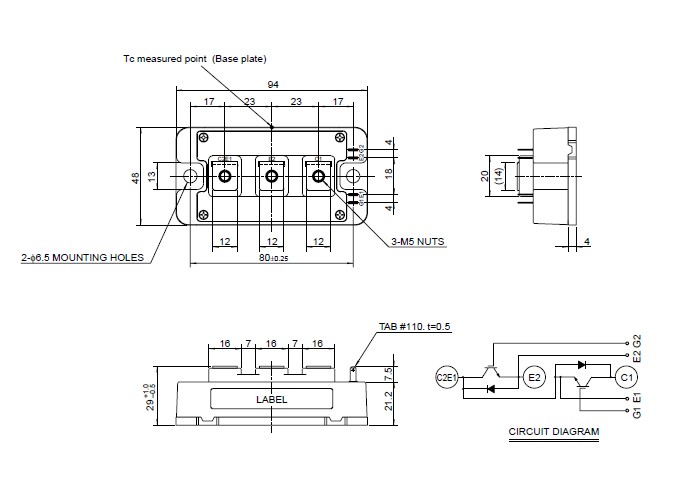

CM150DY-24NF outline drawing & circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM150DY-24NF
CM150DY-24NF


IGBT MOD DUAL 1200V 150A NF SER

Data Sheet

Negotiable
