Product Summary

The TDA8215B is a horizontal and vertical deflection circuit. The TDA8215B is an horizontal and vertical deflection circuit with super sandcastle generator and video identification output. Used with TDA8213 (Video & Sound IF system) and TDA8217 (Pal decoder and video processor), this IC permits a complete low-cost solution for PAL applications. The TDA8215B has been specially designed for direct drive of line DARLINGTON transistors.

Parametrics

TDA8215B absolute maximum ratings: (1)VCC1 Supply Voltage: 30 V; (2)VCC2 Flyback Generator Supply Voltage: 35 V; (3)V9 Frame Power Supply Voltage: 60 V; (4)I10NR Frame Output Current (non repetitive): ± 1.5 A; (5)I10 Frame Output Current (continuous): ± 1 A; (6)V17 Line Output Voltage (external): 60 V; (7)Ip17 Line Output Peak Current: 0.8 A; (8)IC17 Line Output Continuous Current: 0.4 A; (9)TSTG Storage Temperature: –40 to 150 ℃; (10)TJ Max Operating Junction Temperature: + 150 ℃; (11)TAMB Operating Ambient Temperature: 0 to 70 ℃.

Features

TDA8215B features: (1)Direct line darlington drive; (2)Direct frame-yoke drive (± 1A); (3)Composite video signal input capability; (4)Frame output protection against short circuits PLL; (5)Video identification circuit; (6)Super sandcastle output; (7)Very few external components; (8)Very lowcost power package.

Diagrams

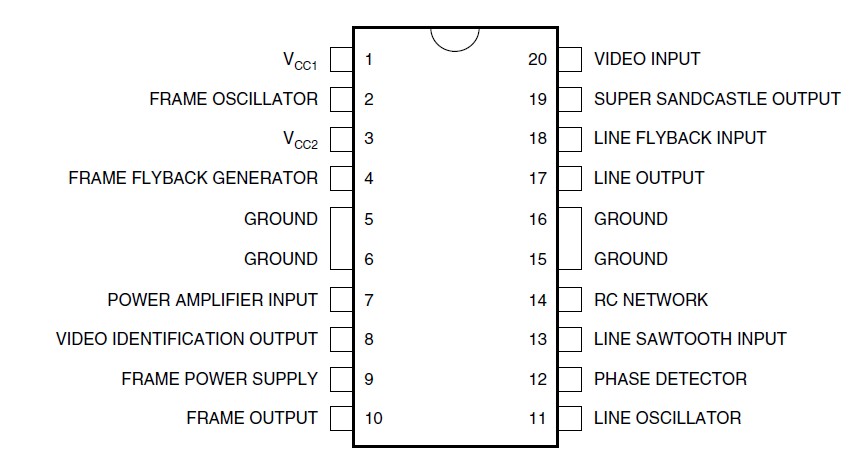

TDA8215B Pin Connections

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TDA8215B
TDA8215B
STMicroelectronics
Plasma Drivers Deflection Circuit Sandcastl Gen Vid ID
Data Sheet
Negotiable
