TLC271

DIP-8, low power, operational amplifier, 0.1 mV, ±30 mA, 18V, 1012 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.60

PartNumber:: TLC271

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Apple Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-22

From Other Seller

Part Number:TLC271
US $0.40 - 0.60
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

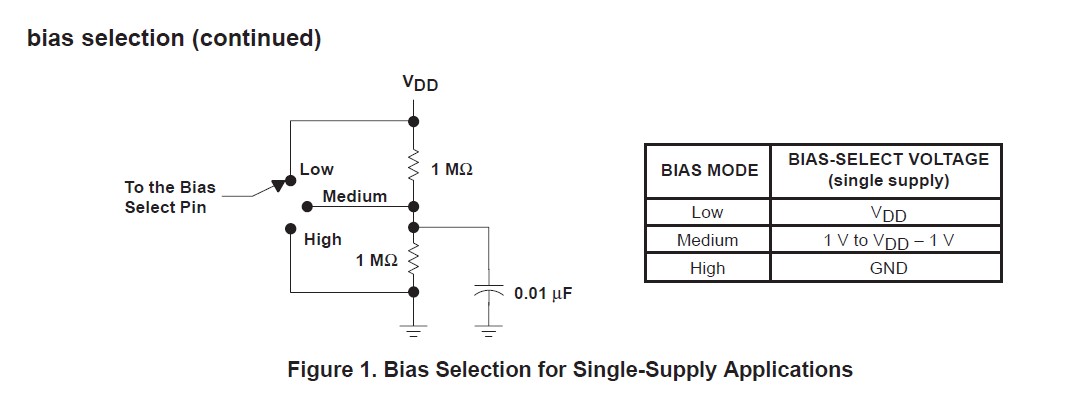

The TLC271 is a LinCMOSE programmable low-power operational amplifier. The TLC271 operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271 offers a bias-select mode that allows the user to select the best combination of power dissipation and ac performance for a particular application. The TLC271 uses Texas Instruments silicon-gate LinCMOSE technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.

Parametrics

TLC271 absolute maximum ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI (any input): – 0.3 V to VDD; (4)Input current, II: ±5 mA; (5)Output current, IO: ±30 mA; (6)Duration of short-circuit current at (or below) 25℃: Unlimited; (7)Storage temperature range: –65℃ to 150℃; (8)Case temperature for 60 seconds: FK package:260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃.

Features

TLC271 features: (1)Input Offset Voltage Drift Typically 0.1 mV/Month, Including the First 30 Days; (2)Single-Supply Operation; (3)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Types); (4)Low Noise 25 nV//Hz Typically at f = 1 kHz (High-Bias Mode); (5)Output Voltage Range includes Negative Rail; (6)High Input Impedance 1012 W Typ; (7)ESD-Protection Circuitry; (8)Small-Outline Package Option Also Available in Tape and Reel; (9)Designed-In Latch-Up Immunity.
