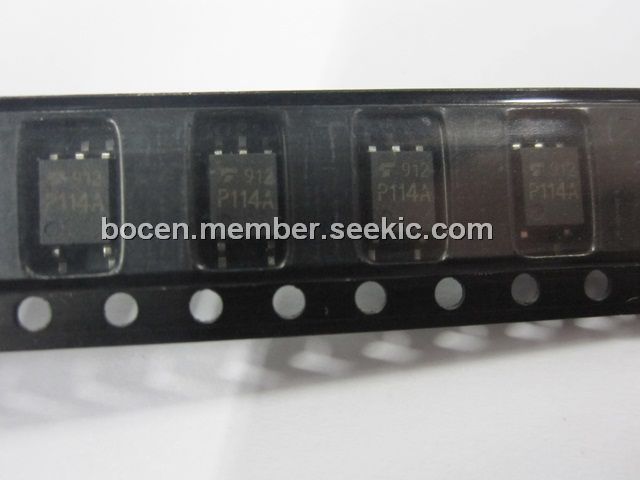

Product Summary
The TLP114A is a digital logic isolation line receiver. The TOSHIBA mini flat coupler TLP114A is a small outline coupler, suitable for surface mount assembly. TLP114A consists of a high output power GaA.As light emitting didoe, optically coupled to a high speed detector of one chip photodiode-transistor.
Parametrics
TLP114A absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Pulse forward current IFP: 40 mA; (3)Peak transient forward current IFPT: 1 A; (4)Reverse voltage VR: 5 V; (5)Output current IO: 8 mA; (6)Peak output current IOP: 16 mA; (7)Supply voltage VCC: -0.5~30 V; (8)Output voltage VO: -0.5~20 V; (9)Output power dissipation PO: 100 mW; (10)Operating temperature range Topr: -55~100 ℃; (11)Storage temperature range Tstg: -55~125 ℃; (12)Lead solder temperature(10 sec.) Tsol: 260 ℃; (13)Isolation Voltage (AC,1 min., R.H.≤ 60°%) BVS: 3750 Vrms.
Features
TLP114A features: (1)Digital Logic Isolation; (2)Line Receiver; (3)Power Supply Control Feedback Control; (4)Switching Power Supply; (5)Transistor Invertor.

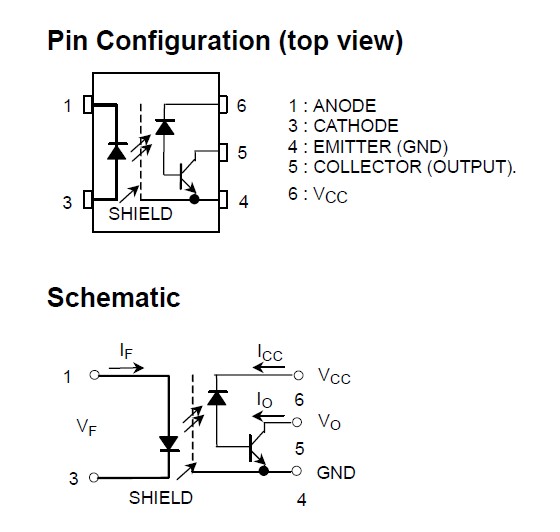

Diagrams
