Product Summary

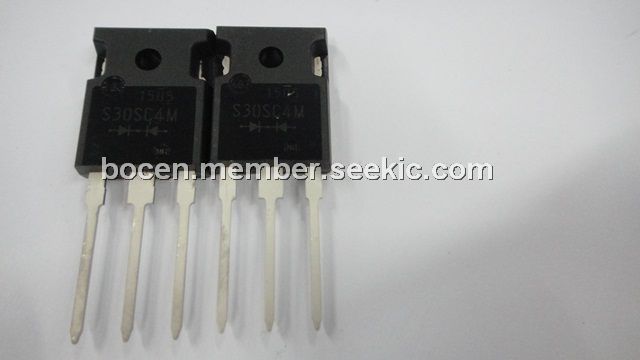

The S30SC4M is designed as one kind of schottky rectifier (SBD) with voltage of 40V and current 30A. Its typcial applications include switching power supply, DC/DC converter, home appliances, office equipment and telecommunication.
Parametrics
S30SC4M absolute maximum ratings: (1)torage temperature range: -40℃ to 150℃; (2)operating junction temperature: 150℃; (3)maximum reverse voltage: 40V; (4)repetitive peak surge reverse voltage: 45V with conditions of pulse width 0.5ms and duty 1/40. (5)average rectified forward current: 30A with conditions of 50Hz sine wave, R-load and rating for each diode Io/2 and Tc=126℃; (6)peak surge forward current: 300A with conditions of 50Hz sine wave and non-repetitive 1 cycle peak value and Tj=125℃; (7)repetitive peak surge reverse power: 1000W with conditions of pulse width 10us and rating of per diode and Tj=25℃; (8)mounting torque: 0.8Nm with conditions of recommended torque 0.5Nm.
Features
S30SC4M features: (1)Its Tj would be max 150℃; (2)Prrsm avalanche guaranteed; (3)small θjc; (4)high current capacity.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S30SC4M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S30SC4M-4100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=40 IFSM=300 |
Data Sheet |
Negotiable |
|
||||
|
S30SC4M-7100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=40 IFSM=300 |
Data Sheet |
Negotiable |
|
||||
|
S30SC4M-7112 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=40 IFSM=300 |
Data Sheet |
Negotiable |
|
||||
|
S30SC4M-4112 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=40 IFSM=300 |
Data Sheet |
Negotiable |
|
||||
