Product Summary

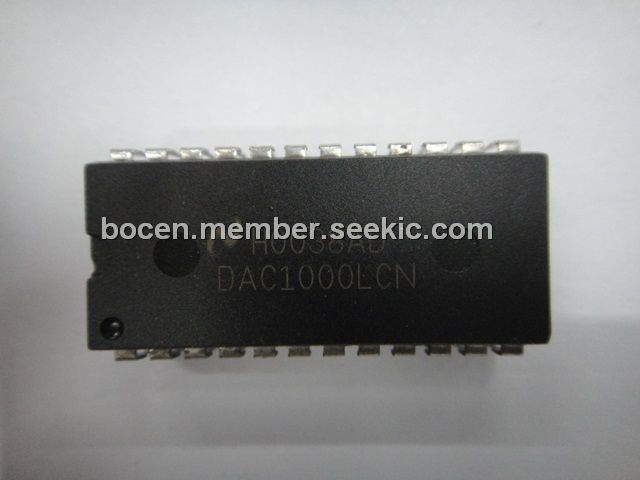

The DAC1000LCN is a double-buffered D to a converter. The DAC1000LCN is advanced CMOS/Si Cr 10- 9- and 8 bit accurate multiplying DACs which are designed to interface directly with the 8080 and other popular microprocessor. The DACs of the DAC1000LCN appear as a memory location or an I/O port to the μP and no interfacing logic is needed.
Parametrics
DAC1000LCN absolute maximum ratings: (1)Supply voltage: 17V; (2)Voltage at any digital input: Vcc to GND; (3)Voltage at VRET input: ±25V; (4)Storage temperature: -65 to +150℃; (5)DC voltage applied to IOUT: -100mV to Vcc.
Features
DAC1000LCN features: (1)Uses easy to adjust END POINT specs, NOT BEST STRAIGHT LINE FIT; (2)Low power consumption; (3)Direct interface to all popular microprocessors; (4)Intergrated thin film on CMOS structure; (5)Double buffered, single buffered or flow through digital data inputs; (6)Loads two 8 bits or a single 10 bit word; (7)Logic inputs which meet TTL voltage level specs.

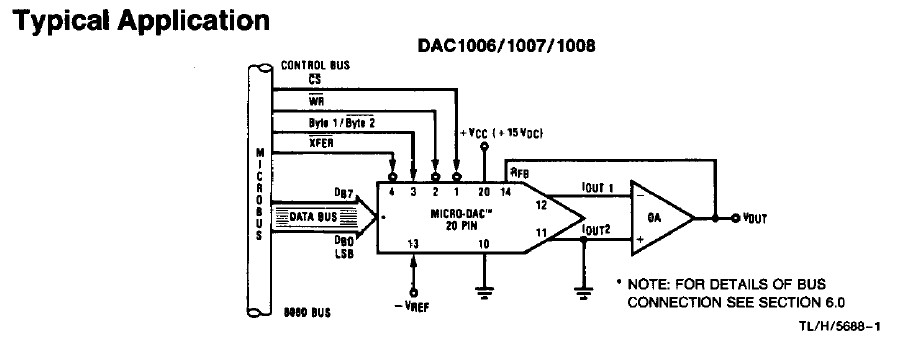

Diagrams
 |
