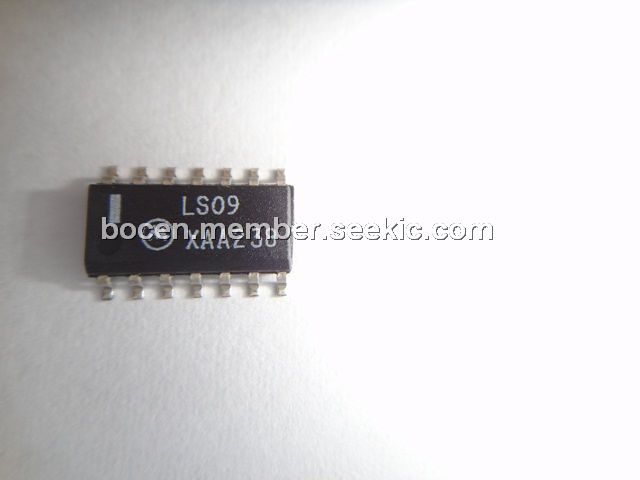

Product Summary

The 74LS09 is a low power schottky.

Parametrics

74LS09 specifications: (1)VCC Supply Voltage: min=4.75V, typ=5.0V, max=5.25V; (2)TA Operating Ambient Temperature Range: min=0, typ=25℃, max=70℃; (3)VOH Output Voltage — High: max=5.5V; (4)IOL Output Current — Low: max=8.0mA.

Features

74LS09 electrical characteristic: (1)VIH Input HIGH Voltage: min=2.0 V; (2)VIL Input LOW Voltage: max=0.8V; (3)VIK Input Clamp Diode Voltage: typ=–0.65V, max=–1.5V; (4)IOH Output HIGH Current: max=100μA; (5)VOL Output LOW Voltage: typ=0.35V, max=0.5V; (6)IIH Input HIGH Current: max=20μA; (7)IIL Input LOW Current: max=–0.4mA; (8)ICC Power Supply Current Total, Output HIGH: max=4.8mA, Output LOW: max=8.8mA.

Diagrams

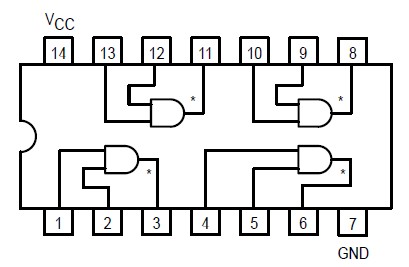

74LS09 diagram
