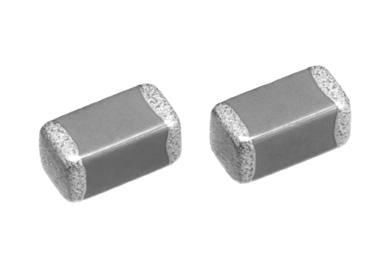

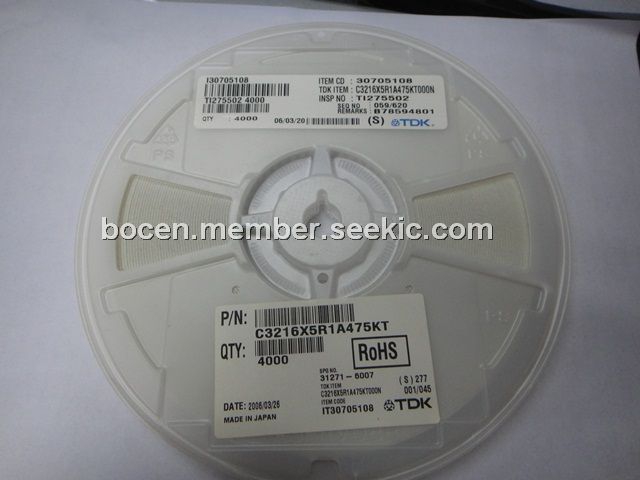

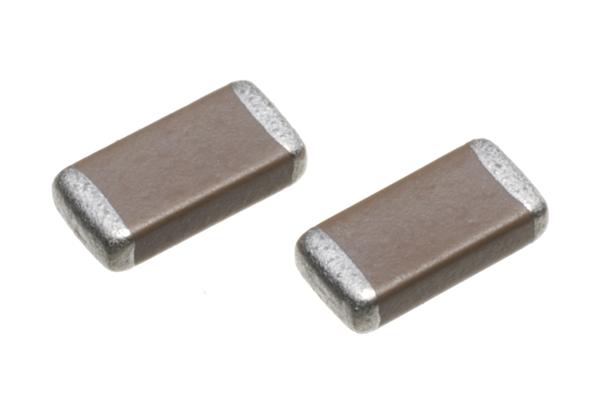

Product Summary

The C3216X5R1A475KT is a multilayer ceramic chip capacitor. The applications of the C3216X5R1A475KT include: decoupling and ripple filters for general electronic devices, time constant circuits, resonance circuits, coupling circuits.

Parametrics

C3216X5R1A475KT specifications: (1)Capacitance change: ±15%; (2)Temperature range: –55 to +85℃.

Features

C3216X5R1A475KT features: (1)An electrostatic capacity has been obtained that reaches the electrolytic capacitor range through precision technology that enables the use of multiple thinner ceramic dielectric layers; (2)Since these capacitors are composed of only ceramics and metals and have a monolithic structure, they offer a long service life and high reliability; (3)Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values; (4)Low self-heating and high ripple resistance due to low ESR.

Diagrams

C3216X5R1A475KT dimensions
