Product Summary

The SN74LS628N is a voltage-controlled oscillator. The voltage controlled ocillator is improved version of the original VCD. The SN74LS628N features improved voltage to frequency linearity, range and compensation. With the exception of the SN74LS628N it features two independent VCOs in a singke monolithic chip.

Parametrics

SN74LS628N absolute maximum ratings: (1)Frequency: 1.1 MHz to 25 MHz; (2)Voltage - Supply 4.75 V ~ 5.25 V ; (3)Minimum Operating Temperature: 0℃; (4)Maximum Operating Temperature: +70℃; (5)Duty Cycle (Max): 50 %; (6)Load Capacitance: 45 pF; (7)Mounting Style: Through Hole; (8)Standard Pack Qty: 25.0; (9)Supply Voltage (Max): 5.25 Volts; (10)Supply Voltage (Min): 4.75 Volts.

Features

SN74LS628N features: (1)Separate Supply Voltage Pins for Isolation of Frequency Control Inputs and Oscillators from Output Circuitry; (2)Highly Stable Operation over Specified Temperature and/or Supply Voltage Ranges.

Diagrams

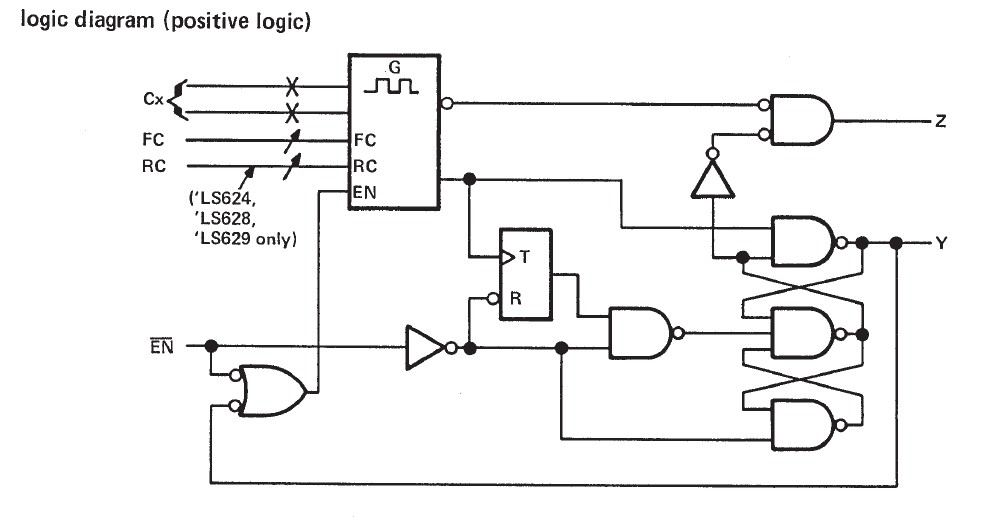

SN74LS628N logic diagram.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

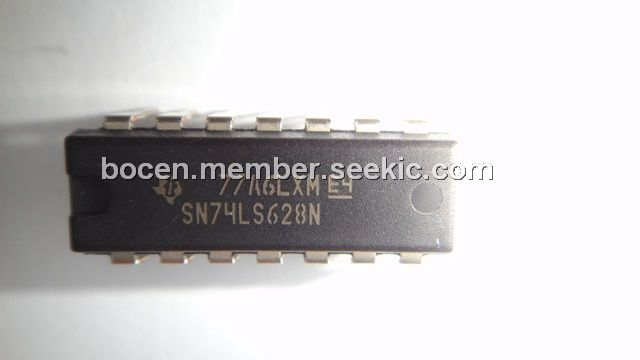

SN74LS628N
SN74LS628N
Texas Instruments
VCO Oscillators Voltage-Controlled Oscillator
Data Sheet
0-1: $2.10
1-25: $1.89
25-100: $1.72
100-250: $1.55
SN74LS628NE4
SN74LS628NE4
Texas Instruments
VCO Oscillators Voltage-Controlled Oscillator
Data Sheet
0-1: $2.10
1-25: $1.72
25-100: $1.55
100-250: $1.43
SN74LS628NSR
SN74LS628NSR
Texas Instruments
VCO Oscillators Voltage-Controlled Oscillator
Data Sheet
0-1490: $1.13
1490-2000: $1.09
2000-5000: $1.05
SN74LS628NSRG4
SN74LS628NSRG4
Texas Instruments
VCO Oscillators Vltg controlled oscillator
Data Sheet
0-1490: $1.13
1490-2000: $1.09
2000-5000: $1.05
SN74LS628NSRE4
SN74LS628NSRE4
Texas Instruments
VCO Oscillators Voltage-Controlled Oscillator
Data Sheet
0-1490: $1.13
1490-2000: $1.09
2000-5000: $1.05
