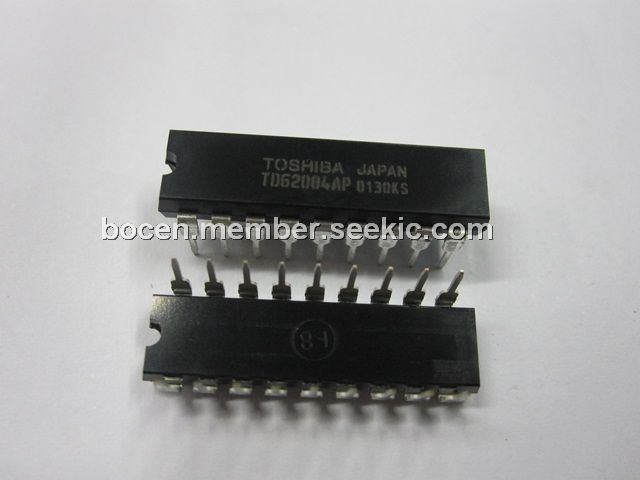

Product Summary

The TD62084AP is a 8ch darlington sink driver. The TD62084AP is a high voltage, high current darlington driver comprised of eight NPN darlington pairs. All units of the TD62084AP feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers.

Parametrics

TD62084AP absolute maximum ratings: (1)Output Sustaining CP VCE (SUS): -0.5~100 Voltage; (2)Output Current CP IOUT: 400 mA / ch; (3)Input Voltage VIN: -0.5~30 V; (4)Input Current IIN: -25 mA; (5)Operating Temperature Topr: -40~85 ℃; (6)Storage Temperature Tstg: -55~150 ℃; (7)Clamp Diode Forward Current IF: 500mA; CP IF: 400mA.

Features

TD62084AP features: (1)Output current (single output) 500 mA (Max.) ; (2)High sustaining voltage output 35 V (Min.) ; (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package type AP, CP : DIP 18 pin; (6)Package type F, AF : SOP18 pin.

Diagrams

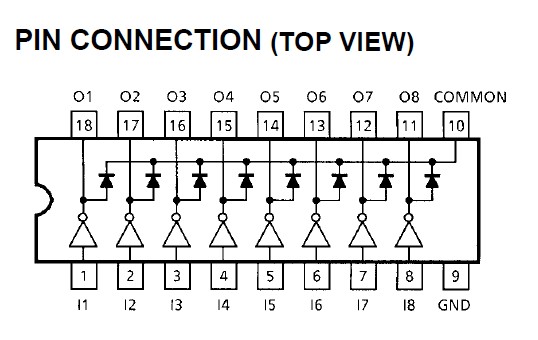

TD62084AP pin connection (top view)
