Product Summary

The SN74HC14N is a HEX schmitt-trigger inverter.

Parametrics

SN74HC14N absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA.

Features

SN74HC14N features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up to 10 LSTTL Loads; (3)Low Power Consumption, 20 VMax ICC; (4)Typical tpd = 11 ns; (5)4-mA Output Drive at 5 V; (6)Low Input Current of 1A.

Diagrams

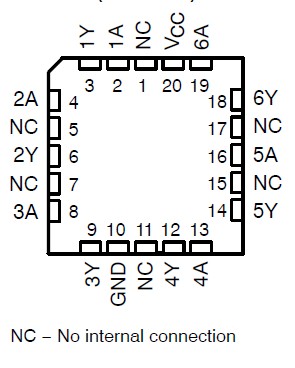

SN74HC14N top view

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74HC14N
SN74HC14N
Texas Instruments
Inverters Hex Schmitt-Trigger
Data Sheet
0-1: $0.22
1-25: $0.17
25-100: $0.12
100-250: $0.11
SN74HC14NE4
SN74HC14NE4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.23
1-25: $0.22
25-100: $0.15
100-250: $0.10
SN74HC14NSRE4
SN74HC14NSRE4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.25
1-25: $0.18
25-100: $0.15
100-250: $0.10
SN74HC14NSR
SN74HC14NSR
Texas Instruments
Inverters Hex Schmitt-Trigger
Data Sheet
0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.11
SN74HC14NSRG4
SN74HC14NSRG4
Texas Instruments
Inverters Hex Schmitt-Trigger Inverters
Data Sheet
0-1: $0.18
1-25: $0.14
25-100: $0.12
100-250: $0.10
